Tractel Davitrac Davit c/w Portable H Base Self-Stabilizing Adaptor

More From This Brand

Add to New List

• Product Info

• Tractel Davitrac Davit c/w Portable H Base Self-Stabilizing Adaptor

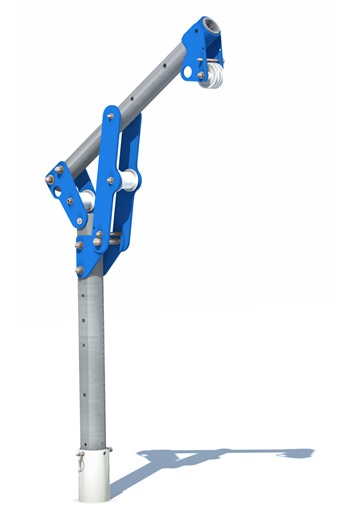

  The Davitrac is a complete solution for safe vertical rope access or material lifting in a confined space situation

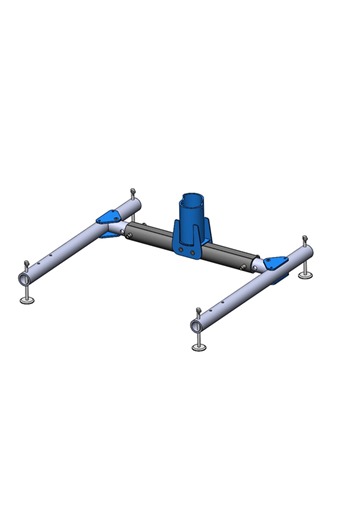

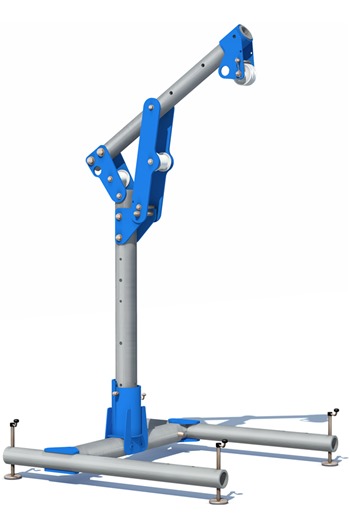

  Supplied with H Base Self-Stabilizing Adaptor (see attached data sheet)

  Mobile and efficient solution for rescue situations

  It offers protection and total mobility for two people simultaneously, during work involving a risk of falling

  The Davitrac is compatible with several other Tractel products, allowing a large number of possible configurations.  It can be equipped with:-

  • Manual and motorised winches for rescue operations as well as lifitng materials (carol™ TE, carol™ MO, scafor®)
  • Motorised wire rope hoisrs hoists for lifting materials (tirak™, minifor™)
  • Manual chain hoists for lifting materials (tralift™)
  • Controlled speed evacuation device (derope™)
  • Fall arresters on a flexible anchor line (stopfor™)
  • Automatic fall arrest block with integrated winch (blocfor™ 20r + 30r)

  *** ALL OF THE ABOVE IS SOLD SEPARATELY ***

  Technical characteristics:-

  • Weight: 29.7kg (without accessories and bases)
  • 2 users: 150kg each
  • Maximum load capacity (materials): WLL 500kg

  Standards:-

  • EN 795:2012 (anchor point)
  • EN 1496 (rescue winch)
  • Machine Directive 2006/42/CE (material lifting)
  • CEN/TS 16415:2013 (fall arrest for 2 users)
  • Individual protection for operators against fall (EN 795 Type A + EN 360)

  Compatible applications:-

  • Rescue
  • Confined spaces
  • Rope works
  • Manholes
  • Pits
  • Sewered access
  • Pipes
  • Oil and gas
  • Civil engineering
  • Industry
  • Wind and solar Installation

  DELIVERY TIME IS CURRENTLY 4 WEEKS FROM DATE OF ORDER

• Specifications
• Brand Tractel

  CE / UKCA Marked Yes

  Conforms to EN Standard EN 1496 & EN 795:2012

  Country of Origin Luxembourg

  Effective Working Length (EWL) 20mtr & 30mtr

  Inspection Period (From date of first use) 12 Months

  Product Material Aluminium & Epoxy

  Maximum User Weight 150kg

  Product Colour Metallic Silver & Blue

  Product Weight 82.5kg

  W.L.L. 500kg

  Additional Information

  Data Sheet Technical Information Instruction Manual Base Information
• Price Breaks
• Tractel Davitrac Davit c/w Portable H Base Self-Stabilizing Adaptor (Net Weight Per Item: 82.50kg):

  Quantity:

  1+

  (£4,244.82 inc VAT)
