Reid Lifting PortaGantry Rapide

More From This Brand

Add to New List

• Product Info

• Reid Lifting PortaGantry Rapide

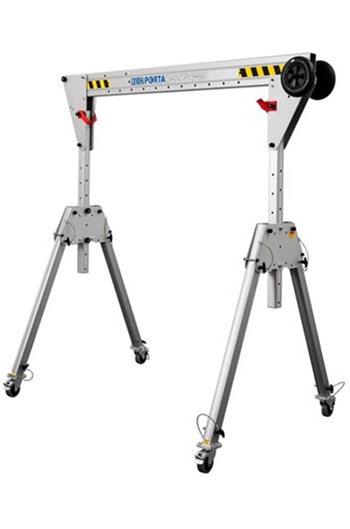

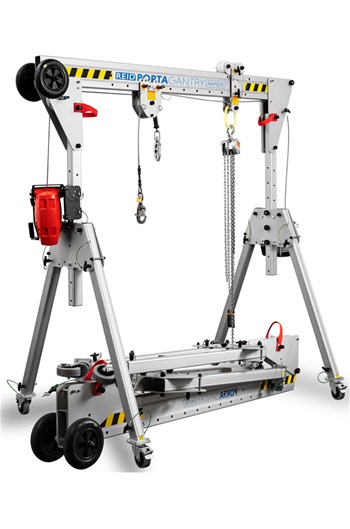

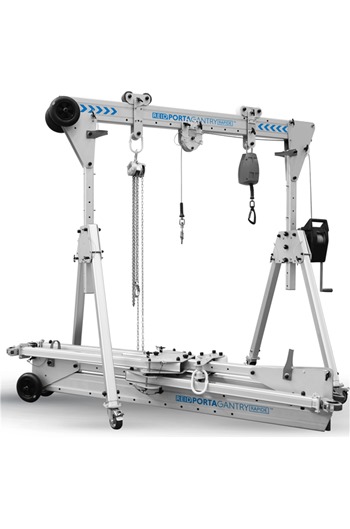

  The unique and innovative PortaGantry Rapide is a height adjustable, foldable Aluminium Gantry designed for rapid deployment

  Capable of an impressive load lifting capacity of up to 500kg (see attached and below loading chart)

  This system can be assembled and disassembled by just one person within a minute without the need for any tools and is the perfect solution for Confined Space Access, Rescue & Entry Lifting scenarios due to it's unique features and ability to lift equipment and personnel

  Available in 3 height-adjustable versions [up to 2.9mtr to the lifting eye] and can accommodate a range of beam lengths up to 4mtr

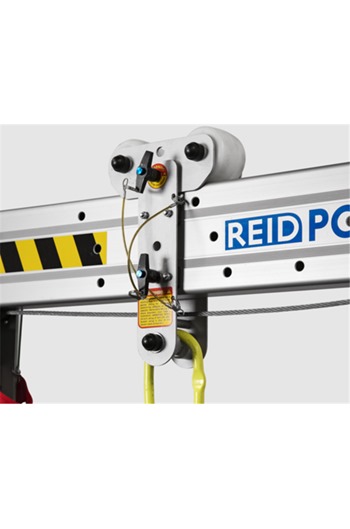

  Supplied with Masterlink Trolley

  Key features:-

  • EN795:2012 & ATEX certified
  • Can support goods and personnel lifting
  • Suitable for up to 3 persons for fall protection applications
  • Personnel capacity up to 250kg
  • Goods capacity up to 500kg (see loading chart)
  • Integrated wheel design that folds with the frame for ease of transportation
  • Easy height adjustment
  • Available in 3 height-adjustable versions [up to 2.9mtr to the lifting eye] and can accommodate a range of beam lengths up to 4mtr
  • Anodised for increased corrosion resistance


  Optional extras:-

  • Gated trolley options and sheave carriers for attaching fall arrest devices
  • A range of winch brackets available for the trap plate or upright
  • Winch ready accessories for lowering and rescue
  • Closed Coupled Trolley - can be used when additional headroom or clearance is needed below the beam



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• PGRS20 PortaGantry Rapide STANDARD with 2mtr Beam (Net Weight Per Item: 35.90kg):

  Quantity:

  1+

  (£3,568.99 inc VAT)
  PGRS23 PortaGantry Rapide STANDARD with 2.3mtr Beam (Net Weight Per Item: 40.90kg):

  Quantity:

  1+

  (£3,614.83 inc VAT)
  PGRS40 PortaGantry Rapide STANDARD with 4mtr Beam (Net Weight Per Item: 45.90kg):

  Quantity:

  1+

  (£3,815.38 inc VAT)
  PGRM20 PortaGantry Rapide MEDIUM with 2mtr Beam (Net Weight Per Item: 40.90kg):

  Quantity:

  1+

  (£3,405.41 inc VAT)
  PGRM23 PortaGantry Rapide MEDIUM with 2.3mtr Beam (Net Weight Per Item: 40.90kg):

  Quantity:

  1+

  (£3,738.89 inc VAT)
  PGRM40 PortaGantry Rapide MEDIUM with 4mtr Beam (Net Weight Per Item: 46.90kg):

  Quantity:

  1+

  (£3,941.02 inc VAT)
  PGRT20 PortaGantry Rapide TALL with 2mtr Beam (Net Weight Per Item: 44.90kg):

  Quantity:

  1+

  (£3,897.53 inc VAT)
  PGRT23 PortaGantry Rapide TALL with 2.3mtr Beam (Net Weight Per Item: 45.90kg):

  Quantity:

  1+

  (£4,053.02 inc VAT)
  PGRT40 PortaGantry Rapide TALL with 4mtr Beam (Net Weight Per Item: 49.90kg):

  Quantity:

  1+

  (£4,268.42 inc VAT)
