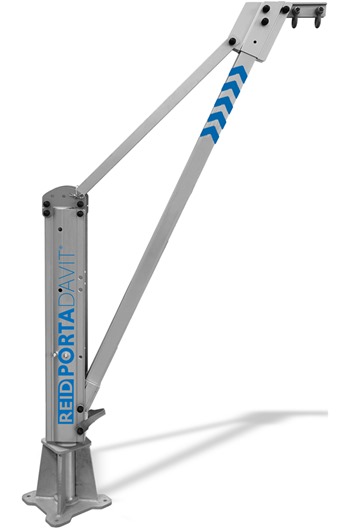

Reid Porta-Davit 1200mm Radius WLL:1000kg

More From This Brand

Add to New List

• Product Info

• Reid Porta-Davit 1200mm Radius WLL:1000kg

  The Reid Porta-Davit is a three piece, rapidly deployable, lightweight solution that offers a working limit of up to 1000kg and can easily be rotated 360° under a full load.  The system can be operated by just one person and can support both goods and personnel lifting

  Can be supplied with or without STMG1000 Galvanised 95mm dia Top Mount Davit Socket

  Key features:-

  • EN795:2012 and ATEX certified
  • Can support goods and personnel lifting
  • Personnel capacity up to 300kg, goods capacity up to 1000kg
  • Ease of assembly with the use of just one pin, no tools required
  • Can be rotated 360° under a full load
  • Three radius adjustment points
  • Shackle lifting points
  • Suitable for use with the Reid range of 95mm sockets
  • Maximum reach: 1200mm
  • Maximum height of lift: 2100mm
  • Model: PDSSH1000-1200R
  • Davit weight: 53kg

• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Reid Porta-Davit 1200mm Radius WLL:1000kg (Net Weight Per Item: 53.00kg):

  Quantity:

  1+

  (£3,894.73 inc VAT)
  Reid Porta-Davit 1200mm Radius WLL:1000kg c/w Top Mount Socket (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£4,291.28 inc VAT)
