Yale ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist

More From This Brand

Add to New List

• Product Info

• Yale ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist

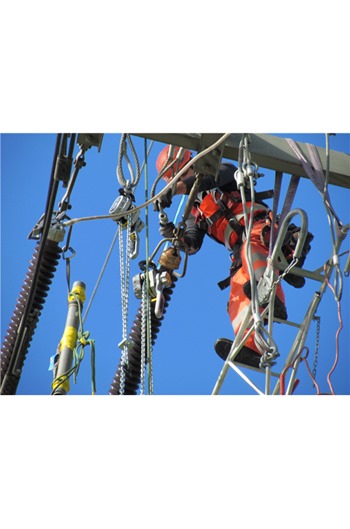

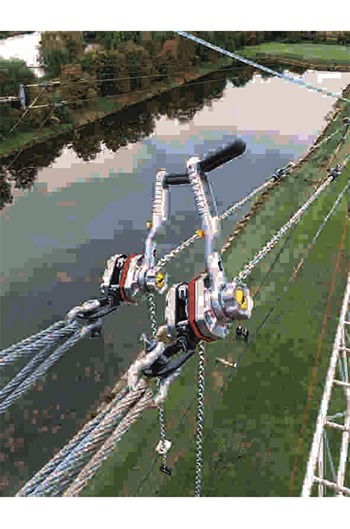

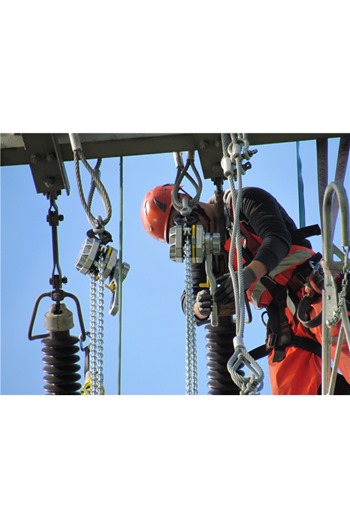

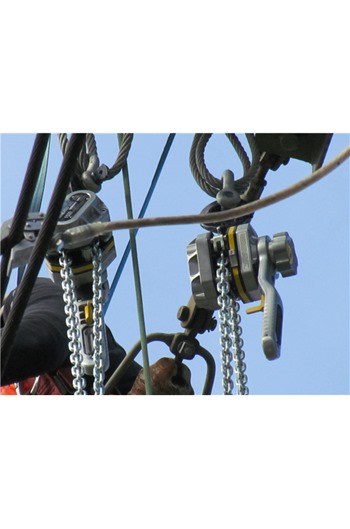

  Special applications such as overhead line construction require specialist lifting equipment

  In accordance with EN 1808 - Safety requirements for suspended access equipment, 8.9.2, the new Yale ERGO UT is supplied fitted with an automatically acting safety device, which offers even more security when used in overhead line construction or similar areas

  The innovative safety device, patent-pending, which prevents a sudden load drop or run through works when a certain speed is exceeded during use as well as during inactive phases - especially when the device has been left under tension for long periods of time

  The system safety absorbs the load after only 25-50mm of chain movement preventing the creation of larger dynamic forces which could cause further damage

  Another highlight is the possiblilty of being able to lift at any time - even after the safety device has been triggered.  By simply turning the hand lever a full turn in the lift direction, the safety device is automatically unlocked.  It can then returned to its original position at the push of a button.  This means that the device can be removed and checked at any time with minimal effort and/or downtime

  Features:-

  • Crank handle made of durable polyamide with a heavy-duty steel core for rugged use
  • Effective operation from any angle with a handle that folds down and locks into position on either side of the lever
  • The design keeps the operator's body aligned with the load chain, reducing the risk of the twist effect - when a hoist twists around the chain.  No need to use a second hand to stabilize the hoist
  • Operator can securely grip the grooved, no-slip handle

  SWL: 6000kg

  Number of chain falls: 2

  Chain dimensions: 10x28

  Closed height: 563mm

  Handle effort at WLL:38 daN

  Weight at 1.5mtr HOL: 29.8kg

  Available in 1.5mtr, 3mtr, 4mtr & 6mtr HOL



• Specifications
• Brand Yale

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Data Sheet Instruction Manual Parts Breakdown
• Price Breaks
• YALE ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist HOL:1.5mtr (Net Weight Per Item: 29.80kg):

  Quantity:

  1+

  (£1,186.04 inc VAT)
  YALE ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist HOL:3mtr (Net Weight Per Item: 36.40kg):

  Quantity:

  1+

  (£1,399.90 inc VAT)
  YALE ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist HOL:4mtr (Net Weight Per Item: 40.80kg):

  Quantity:

  1+

  (£1,470.05 inc VAT)
  YALE ERGO 360 UT "Utility" 6000kg Ratchet Leverhoist HOL:6mtr (Net Weight Per Item: 49.60kg):

  Quantity:

  1+

  (£1,612.20 inc VAT)
