• YALE ERGO 360 6000kg RATCHET LEVERHOIST

  Redefing lever-operated hoists, the Yale ERGO 360 features the revolutionary crank handle that allows for effiecient operation in both lifting and pulling applications

  Ergonmically designed for increased safety, the patent-pending Yale ERGO 360 lets the operator to work up to 12 times faster and with as much as 30% less pull force than conventional ratchet lever tools

  BENEFITS & FEATURES

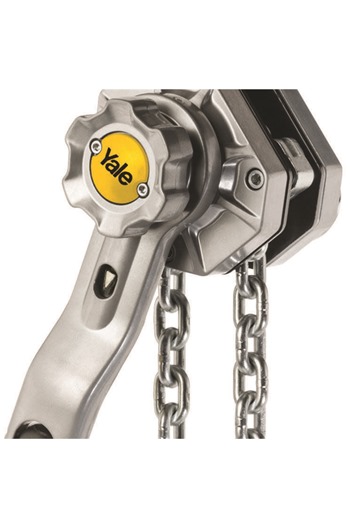

  • Crank Handle - this first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry.  Its unique foldable lever handle and 360degree rotation action increases productivity while reducing the risk of operator injury
  • Convenient directional indicator - Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as listing, lowering or neutral
  • Easy & Smooth free chaining - For quick take up and positioning of slack chain - even with one hand.  Designed not to be accidently free chain while under load.  Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist
  • Positive load control - Enclosed Weston-type brake stays clean and dry for precise load positioning
  • Built to last - Lightweight aluminium housing withstands rigorous use and features high-quality, long-lasting bearings.  Powder coat finish provides extra protection in harsh environments
  • Excellent corrosion protection - Robust chain giude and chain stripper made from cast steel and zinc-plated for corrosion protection
  • Easy-to-inspect Swivel Hooks - Bolt on Hooks with nylon locks simplify the inspection (process).  Hooks are forged, allowing them to yield under overload without breaking.  Cast safety latches provide positive and secure load engagement
  • Easy identification - Each unit has a unique serial number for easy and accurate identification

  SWL: 6000kg

  Number of chain falls: 2

  Chain dimensions: 10 x 28mm

  Closed height: 563mm

  Handle effort at WLL: 38 daN

  Available in 1.5mtr, 3mtr, 4mtr & 6mtr HOL


• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• YALE ERGO 360 6000kg Ratchet Leverhoist HOL:1.5mtr (Net Weight Per Item: 28.90kg):

  Quantity:

  1+

  (£1,051.56 inc VAT)
  YALE ERGO 360 6000kg Ratchet Leverhoist HOL:3mtr (Net Weight Per Item: 34.90kg):

  Quantity:

  1+

  (£1,214.66 inc VAT)
  YALE ERGO 360 6000kg Ratchet Leverhoist HOL:4mtr (Net Weight Per Item: 37.90kg):

  Quantity:

  1+

  (£1,266.36 inc VAT)
  YALE ERGO 360 6000kg Ratchet Leverhoist HOL:6mtr (Net Weight Per Item: 43.90kg):

  Quantity:

  1+

  (£1,414.15 inc VAT)
