YALE 500kg 3phase Electric Hoist with Powered Trolley

More From This Brand

Add to New List

• Product Info

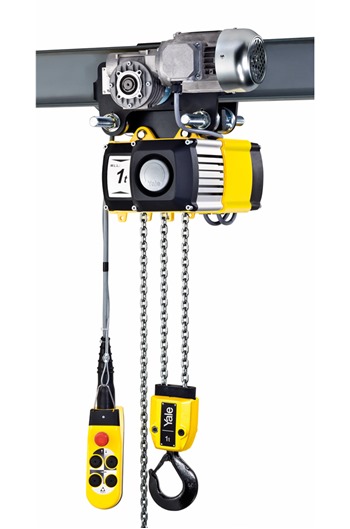

• YALE CPV5-8 500kg 3phase Electric Chain Hoist c/w Powered Trolley

  Yale Trolley Hoist Specifications:

  SWL: 500kg

  Falls of chain: 1

  Hoist speed: 8mtrs/min

  Avaible from 3mtr HOL to 15mtr HOL

  Single speed Powered Trolley (18mtrs/min)

  The new YALE CPV Electric Chain Hoist combines modern design and technical innovation.  A robust construction makes the series a versatile tool for industrial applications.  Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox

  Yale Trolley Hoist Features Include:-

  • Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
  • Designed to FEM 1am. H3 (HMI)
  • Main line contactor for increased safety
  • Duty cycle 50% ED for single speed
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure
  • The externally adjustable slip clutch is designed to guarantee a permanent connection betweem the load and the brake
  • Motor classification H3 and protected to IP 55 against ingress of dust and water jets
  • Standard operating voltage: 400V, 3Ph, 50hz
  • Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
  • Price includes Chainbag
  • Fully tested and certified



  For more information on our Yale Trolley Hoist, be sure to contact Safety Liftin Gear today!

• Specifications
• Brand CMCO

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Specifications
• Price Breaks
• YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:03mtr (Net Weight Per Item: 35.00kg):

  Quantity:

  1+

  (£2,830.85 inc VAT)
  YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:04mtr (Net Weight Per Item: 36.00kg):

  Quantity:

  1+

  (£2,871.30 inc VAT)
  YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:06mtr (Net Weight Per Item: 38.00kg):

  Quantity:

  1+

  (£2,952.24 inc VAT)
  YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:10mtrs (Net Weight Per Item: 40.00kg):

  Quantity:

  1+

  (£3,114.18 inc VAT)
  YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:12mtrs (Net Weight Per Item: 42.00kg):

  Quantity:

  1+

  (£3,195.08 inc VAT)
  YALE 500kg 3phase Electric Hoist with Powered Trolley HOL:15mtrs (Net Weight Per Item: 45.00kg):

  Quantity:

  1+

  (£3,316.52 inc VAT)
