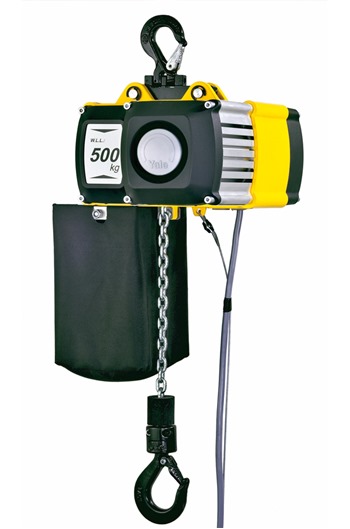

YALE CPV5-8 500kg 3phase Electric Chain Hoist

More From This Brand

Add to New List

• Product Info

• YALE CPV5-8 500kg 3phase Electric Chain Hoist

  Yale CPV Electric Chain Hoist Features:

  SWL: 500kg

  Falls of chain: 1

  Hoist speed: 8mtrs/min

  Available from 3mtr HOL to 15mtr HOL

  The new YALE CPV Electric Chain Hoist combines modern design and technical innovation. A robust construction makes the series a versatile tool for industrial applications. Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox

  Yale CPV Electric Chain Hoist Benefits:

  • Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
  • Designed to FEM 1am. H3 (HMI)
  • Main line contactor for increased safety
  • Duty cycle 50% ED for single speed
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure
  • The externally adjustable slip clutch is designed to guarantee a permanent connection between the load and the brake
  • Motor classification H3 and protected to IP 55 against ingress of dust and water jets
  • Standard operating voltage: 400V, 3Ph, 50hz
  • Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
  • Hook suspension
  • Price includes Chain bag
  • Fully tested and certified



  Get more information on this Yale CPV Electric Chain Hoist today by contacting a member of the Safety Liftin Gear team today.

• Specifications
• Brand CMCO

  Custom Made Product Yes

  Inspection Period (From date of first use) No

  Additional Information

  Specifications
• Price Breaks
• YALE 500kg 3phase Electric Chain Hoist HOL:03mtr (Net Weight Per Item: 21.00kg):

  Quantity:

  1+

  (£1,982.14 inc VAT)
  YALE 500kg 3phase Electric Chain Hoist HOL:04mtr (Net Weight Per Item: 22.00kg):

  Quantity:

  1+

  (£2,021.06 inc VAT)
  YALE 500kg 3phase Electric Chain Hoist HOL:06mtr (Net Weight Per Item: 24.00kg):

  Quantity:

  1+

  (£2,098.96 inc VAT)
  YALE 500kg 3phase Electric Chain Hoist HOL:10mtr (Net Weight Per Item: 26.00kg):

  Quantity:

  1+

  (£2,254.62 inc VAT)
  YALE 500kg 3phase Electric Chain Hoist HOL:12mtr (Net Weight Per Item: 28.00kg):

  Quantity:

  1+

  (£2,332.48 inc VAT)
  YALE 500kg 3phase Electric Chain Hoist HOL:15mtr (Net Weight Per Item: 30.00kg):

  Quantity:

  1+

  (£2,449.28 inc VAT)
