Scissor Lift Hydraulic Platform Table 500kg

More From This Brand

Add to New List

• Product Info

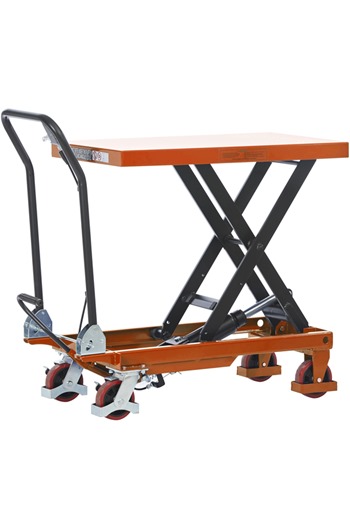

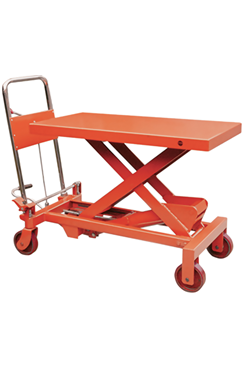

• The LiftinGear 500kg Scissor Lift Hydraulic Platform Table eliminates repetitive bending and manual handling strain by raising loads up to 880mm to a comfortable working height.

  This heavy-duty mobile lift table operates via a simple foot-pump hydraulic system no electrical power required making it ideal for warehouses, workshops and production environments where reliable lifting of the heaviest loads is needed throughout the day.

  Simply load the platform, pump the foot pedal to raise, and twist the release valve to lower for controlled descent. Supplied with a declaration of conformity (DOC) for compliance records and backed by a 12-month warranty.

  ---

  Key Features

  • 500kg Working Load Limit (WLL)
  • Raises loads up to 880mm working height
  • Compact 285mm closed height
  • 815mm x 500mm platform
  • Manual hydraulic foot pump no electrical power required
  • Controlled lowering via release valve
  • Lockable swivel castors for safe positioning
  • Heavy-duty steel construction
  • Supplied with declaration of conformity (DOC)
  • 12-month warranty

  ---

  Specifications Overview

  • Model Number: 03323
  • Working Load Limit: 500kg
  • Maximum Lift Height: 880mm
  • Closed Height: 285mm
  • Platform Dimensions: 815mm (L) x 500mm (W) x 50mm (T)
  • Operation: Manual hydraulic foot pump
  • Lowering Method: Controlled release valve
  • Castors: 2 x swivel (braked) + 2 x fixed
  • Construction: Heavy-duty steel
  • Finish: Orange powder-coated
  • Unit Weight: 82kg (approx.)
  • Certification: Declaration of conformity (DOC)
  • Warranty: 12 months

  ---

  Applications

  Suitable for use in:

  • Warehouse packing and dispatch areas - raise heavy consolidated palletized orders to bench height
  • Assembly and production lines - position industrial machinery and heavy assemblies at ergonomic working height
  • Stock picking and goods handling - handle the heaviest loads while reducing repetitive bending
  • Engineering workshops - elevate industrial equipment or heavy machinery for inspection and maintenance
  • Heavy maintenance tasks - stable platform for controlled access to equipment up to 500kg

  Ideal for environments where loads up to 500kg need to be raised safely without the need for electrical power.

• Specifications
• Brand LiftinGear

  Product Weight 82kg

  Product Colour Orange

  Material Steel

  Maximum Lift Height 880mm

  Lift Range 595mm

  Closed Height 285mm

  Ground Clearance .

  Handle Height 990mm

  Overall Length 1060mm

  Overall Width .

  Platform Length 815mm

  Platform Width 500mm

  Platform Thickness 50mm

  W.L.L. 500kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift 27

  Lift Height per Pedal Cycle .

  Wheel Material .

  Wheel Type .

  Wheel Diameter 125mm

  Wheel Width 40mm

  Available for Hire Yes

  CE / UKCA Marked .

  Conforms to EN Standard .

  Certification Supplied .

  Inspection Period (From date of first use) .

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Catalogue Information Instruction Manual
• Price Breaks
• Hydraulic Platform Table 500kg (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£428.65 inc VAT)
