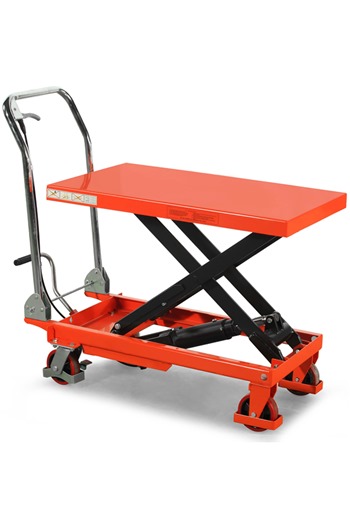

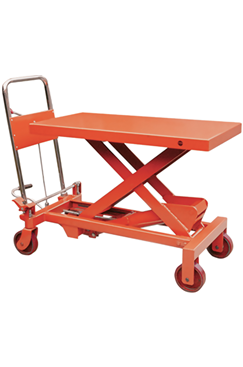

Scissor Lift Hydraulic Platform Table 300kg

More From This Brand

Add to New List

• Product Info

• The LiftinGear 300kg Scissor Lift Hydraulic Platform Table eliminates repetitive bending and manual handling strain by raising loads up to 880mm to a comfortable working height.

  This mobile manual lift table operates via a simple foot-pump hydraulic system no electrical power required making it ideal for warehouses, workshops and production environments where reliable lifting of heavier loads is needed throughout the day.

  Simply load the platform, pump the foot pedal to raise, and twist the release valve to lower for controlled descent. Supplied with a declaration of conformity (DOC) for compliance records and backed by a 12-month warranty.

  ---

  Key Features

  • 300kg Working Load Limit (WLL)
  • Raises loads up to 880mm working height
  • Compact 285mm closed height
  • 815mm x 500mm platform
  • Manual hydraulic foot pump no electrical power required
  • Controlled lowering via release valve
  • Lockable swivel castors for safe positioning
  • Heavy-duty steel construction
  • Supplied with declaration of conformity (DOC)
  • 12-month warranty

  ---

  Specifications Overview

  • Model Number: 03322
  • Working Load Limit: 300kg
  • Maximum Lift Height: 880mm
  • Closed Height: 285mm
  • Platform Dimensions: 815mm x 500mm x 50mm
  • Operation: Manual hydraulic foot pump
  • Lowering Method: Controlled release valve
  • Castors: 2 x swivel (braked) + 2 x fixed
  • Construction: Heavy-duty steel
  • Finish: Orange powder-coated
  • Unit Weight: 74 kg (approx.)
  • Certification: Declaration of conformity (DOC)
  • Warranty: 12 months

  ---

  Applications

  Suitable for use in:

  • Warehouse packing and dispatch areas - raise heavier consolidated orders to bench height for faster processing
  • Assembly and production lines - position machinery and heavy components at ergonomic working height
  • Stock picking and goods handling - handle bulkier loads while reducing repetitive bending
  • Engineering workshops - elevate industrial equipment or heavy assemblies for inspection
  • Maintenance tasks - stable platform for controlled access to heavier machinery

  Ideal for environments where loads up to 300kg need to be raised safely without the need for electrical power.

• Specifications
• Brand LiftinGear

  Product Weight 74kg

  Product Colour Orange

  Material Steel

  Maximum Lift Height 880mm

  Lift Range 595mm

  Closed Height 285mm

  Ground Clearance .

  Handle Height .

  Overall Length .

  Overall Width .

  Platform Length 815mm

  Platform Width 500mm

  Platform Thickness 50mm

  W.L.L. 300kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift .

  Lift Height per Pedal Cycle .

  Wheel Material .

  Wheel Type .

  Wheel Diameter .

  Wheel Width .

  Available for Hire Yes

  CE / UKCA Marked .

  Conforms to EN Standard .

  Certification Supplied .

  Inspection Period (From date of first use) .

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Catalogue Information Instruction Manual
• Price Breaks
• Platform Table 300kg (Net Weight Per Item: 74.00kg):

  Quantity:

  1+

  (£368.51 inc VAT)
