Pfaff HXD350 350kg Double Action Scissor Lift Platform Table

More From This Brand

Add to New List

• Product Info

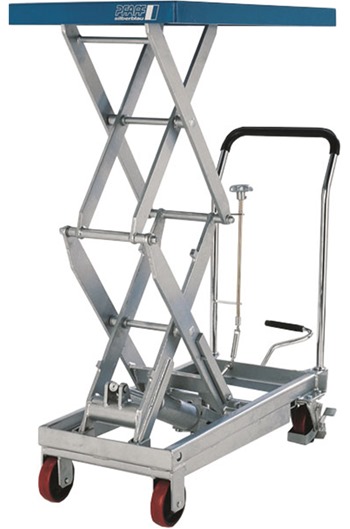

• Pfaff HXD350 350kg Double Action Scissor Lift Platform Table

  The Pfaff HX300 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HXD350

  Lifting capacity: 350kg

  Rollers: Polyurethane

  Overall unit height: 965mm

  Overall unit length: 1140mm

  Max height of platform: 1300mm

  Min height of platform: 370mm

  Platform length: 910mm

  Platform width: 500mm

  Floor/ground clearance: 31mm

  Lift height per stroke: 21mm

  Weight: 136kgs



• Specifications
• Brand PFAFF

  Product Weight 136kg

  Product Colour Silver & Navy

  Material .

  Maximum Lift Height 1300mm

  Lift Range 930mm

  Closed Height 370mm

  Ground Clearance 31mm

  Handle Height .

  Overall Height 965mm

  Overall Length 1140mm

  Overall Width 500mm

  Platform Length 910mm

  Platform Width 500mm

  Platform Thickness .

  W.L.L. 350kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift 45

  Lift Height per Pedal Cycle 21mm

  Wheel Material Polyurethane

  Wheel Type .

  Wheel Diameter 128mm

  Wheel Width 40mm

  Available for Hire No

  CE / UKCA Marked .

  Conforms to EN Standard EN 1570 & EN 1757-4

  Certification Supplied .

  Inspection Period (From date of first use) .

  Warranty .

  Custom Made Product No

  Included in Return Policy No

  Third Party Supplied Yes

  Additional Information

  Data Sheet
• Price Breaks
• Pfaff HXD350 350kg Double Action Scissor Lift Platform Table (Net Weight Per Item: 136.00kg):

  Quantity:

  1+

  (£933.18 inc VAT)
