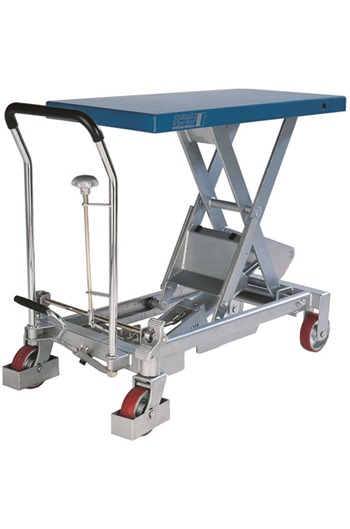

Pfaff HX750 750kg Scissor Lift Platform Table

More From This Brand

Add to New List

• Product Info

• Pfaff HX750 750kg Scissor Lift Platform Table

  The Pfaff HX750 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HX750

  Lifting capacity: 750kg

  Rollers: Polyurethane

  Overall unit height: 990mm

  Overall unit length: 1330mm

  Max height of platform: 1000mm

  Min height of platform: 420mm

  Platform length: 1000mm

  Platform width: 510mm

  Floor/ground clearance: 72mm

  Lift height per stroke: 15mm

  Weight: 120kgs



• Specifications
• Brand PFAFF

  Product Weight 120kg

  Product Colour Silver & Navy

  Material .

  Maximum Lift Height 1000mm

  Lift Range 580mm

  Closed Height 420mm

  Ground Clearance 72mm

  Handle Height .

  Overall Height 990mm

  Overall Length 1330mm

  Overall Width 600mm

  Platform Length 1000mm

  Platform Width 510mm

  Platform Thickness .

  W.L.L. 750kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift 39

  Lift Height per Pedal Cycle 15mm

  Wheel Material Polyurethane

  Wheel Type .

  Wheel Diameter 147mm

  Wheel Width 50mm

  Available for Hire No

  CE / UKCA Marked .

  Conforms to EN Standard .

  Certification Supplied .

  Inspection Period (From date of first use) .

  Warranty .

  Custom Made Product No

  Included in Return Policy No

  Third Party Supplied Yes

  Additional Information

  Data Sheet
• Price Breaks
• Pfaff HX750 750kg Scissor Lift Platform Table (Net Weight Per Item: 120.00kg):

  Quantity:

  1+

  (£809.33 inc VAT)
