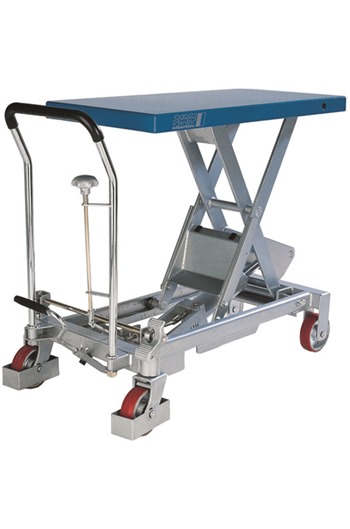

Pfaff HX150 150kg Scissor Lift Platform Table

More From This Brand

Add to New List

• Product Info

• Pfaff HX150 150kg Scissor Lift Platform Table

  The Pfaff HX150 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HX150

  Lifting capacity: 150kg

  Rollers: Polyurethane

  Overall unit height: 960mm

  Overall unit length: 908mm

  Max height of platform: 720mm

  Min height of platform: 220mm

  Platform length: 700mm

  Platform width: 450mm

  Floor/ground clearance: 26mm

  Lift height per stroke: 27mm

  Weight: 49kgs



• Specifications
• Brand PFAFF

  Product Weight 49kg

  Product Colour Silver & Navy

  Material .

  Maximum Lift Height 720mm

  Lift Range 500mm

  Closed Height 220mm

  Ground Clearance 26mm

  Handle Height .

  Overall Height 960mm

  Overall Length 908mm

  Overall Width 450mm

  Platform Length 700mm

  Platform Width 450mm

  Platform Thickness .

  W.L.L. 150kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift 19

  Lift Height per Pedal Cycle 27mm

  Wheel Material .

  Wheel Type .

  Wheel Diameter 100mm

  Wheel Width 36mm

  Available for Hire No

  CE / UKCA Marked .

  Conforms to EN Standard .

  Certification Supplied .

  Inspection Period (From date of first use) .

  Warranty .

  Custom Made Product No

  Included in Return Policy No

  Third Party Supplied Yes

  Additional Information

  Data Sheet
• Price Breaks
• Pfaff HX150 150kg Scissor Lift Platform Table (Net Weight Per Item: 49.00kg):

  Quantity:

  1+

  (£498.08 inc VAT)
