MOD70 Spreader Beam 70tonne 2mtr to 12mtr

More From This Brand

Add to New List

• Product Info

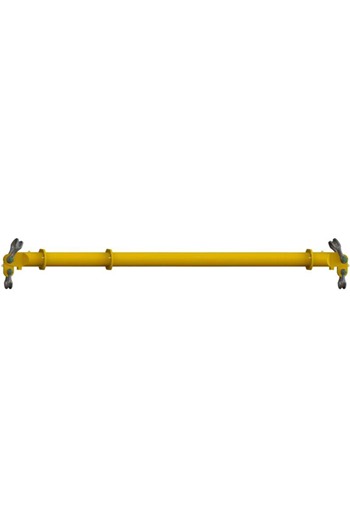

• MOD70 70tonne Spreader Beam

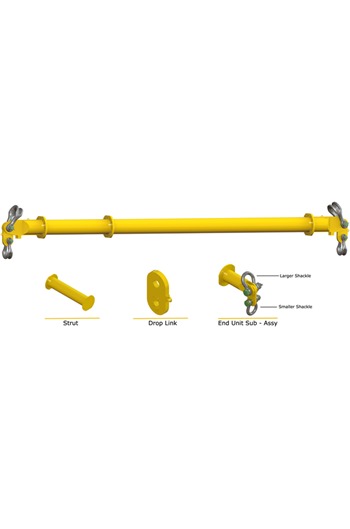

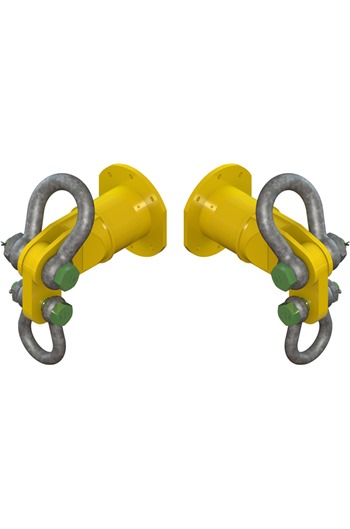

  The MOD70 Spreader Beam consists of 1x pair of 500mm End Units and Drop Links, 2x 55ton Screw Pin Alloy Bow Shackles and 2x 35ton Screw Pin Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM = 12MTRS), please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

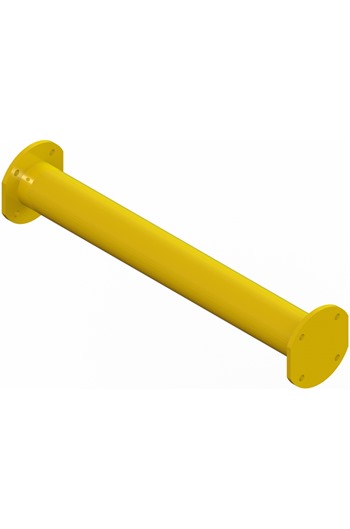

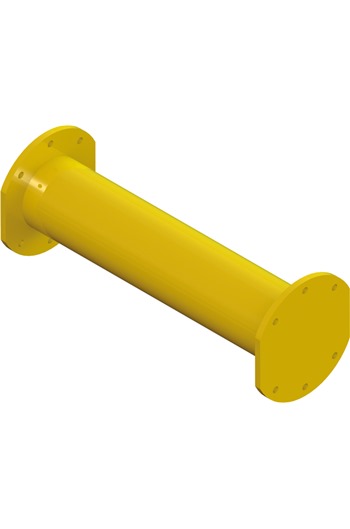

  MOD70-2M-RS - 2x 500mm End Units, 1x 1000mm strut

  MOD70-3M-RS - 2x 500mm End Units, 1x 2000mm strut

  MOD70-4M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut

  MOD70-5M-RS - 2x 500mm End Units, 1x 4000mm strut

  MOD70-6M-RS - 2x 500mm End Units, 1x40000mm strut, 1x 1000mm strut

  MOD70-7M-RS - 2x 500mm End Units, 1x 4000mm strut, 1x 2000mm strut

  MOD70-8M-RS - 2 x 500mm End Units, 1x 4000mm strut, 1x 2000mm strut, 1x 1000mm strut

  MOD70-9M-RS - 2x 500mm End Units, 2x 4000mm struts

  MOD70-10M-RS - 2x 500mm End Units, 2x 4000mm struts, 1x 1000mm strut

  MOD70-11M-RS - 2x 500mm End Units, 2x 4000mm struts, 1x 2000mm strut

  MOD70-12M-RS - 2x 500mm End Units, 2x 4000mm struts, 1x 2000mm strut, 1x 1000mm strut

  MOD70 - BEAM SPECIFICATION

  • Rated at 70tonne SWL at 9mtr span (30° 'Sling to Vertical' angle) - See Load Table for SWL at longer spans as beam de-rates
  • For 45° 'Sling to Vertical' angle - please see loading chart for SWL
  • Fully certified and tested
  • Used by many of the leading Rental and Crane Hire companies
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
  • Available for hire at very competitive rates (please contact us)





• Specifications

• Additional Information

  Data sheet
• Price Breaks
• 2mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 351.00kg):

  Quantity:

  1+

  (£5,666.38 inc VAT)
  3mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 422.00kg):

  Quantity:

  1+

  (£6,339.47 inc VAT)
  4mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 487.00kg):

  Quantity:

  1+

  (£7,713.07 inc VAT)
  5mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 506.00kg):

  Quantity:

  1+

  (£7,581.90 inc VAT)
  6mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 591.00kg):

  Quantity:

  1+

  (£8,955.53 inc VAT)
  7mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 642.00kg):

  Quantity:

  1+

  (£9,583.87 inc VAT)
  8mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 727.00kg):

  Quantity:

  1+

  (£10,957.49 inc VAT)
  9mtr MOD70 70tonne Spreader Beam (Net Weight Per Item: 746.00kg):

  Quantity:

  1+

  (£10,826.45 inc VAT)
  10mtr MOD70 59tonne Spreader Beam (Net Weight Per Item: 831.00kg):

  Quantity:

  1+

  (£12,200.06 inc VAT)
  11mtr MOD70 47tonne Spreader Beam (Net Weight Per Item: 882.00kg):

  Quantity:

  1+

  (£12,828.28 inc VAT)
  12mtr MOD70 38tonne Spreader Beam (Net Weight Per Item: 967.00kg):

  Quantity:

  1+

  (£14,137.31 inc VAT)
