3000kg Aluminium Gantry, 3mtr beam, 2200-3600mm

More From This Brand

Add to New List

• Product Info

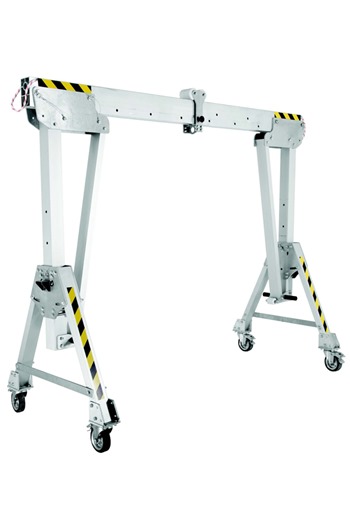

• The Easy-Rig Aluminium Gantry is a lightweight, fully customisable portable gantry that's designed for lifting heavy loads.

  This aluminium gantry is ideal for lifting applications in confined spaces, silos, rooftops, lift shafts, water treatment works, clean environments and many other work environments.

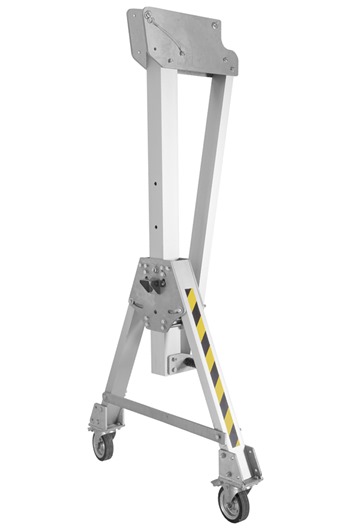

  Consisting of two A-frames and a 3m beam, this aluminium lifting gantry is lightweight and easy to transport

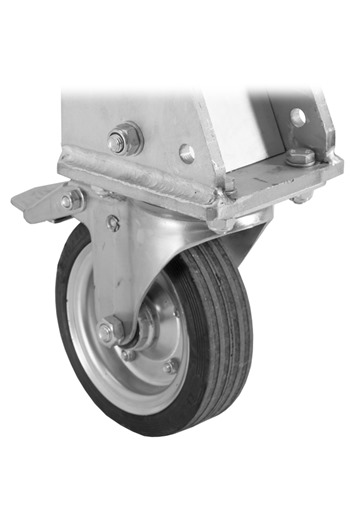

  A-frames are supplied with 160mm diameter 360° castors with brake.

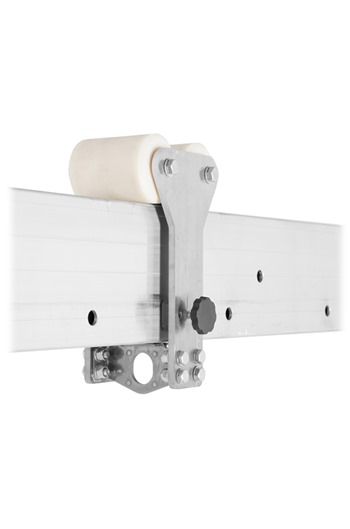

  Beam is supplied with external trolley for lifting applications and hitch for raising the support.

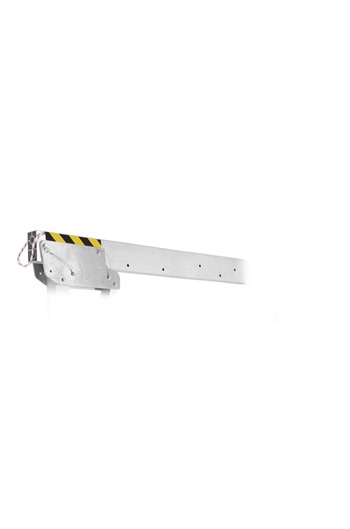

  Beams are interchangeable, which means longer or shorted beams can be added (always check the instruction manual for WLL if the beam is changed over).

  These aluminium gantries can be used with a manual chain block, lever hoist, electric hoist or RUP502-T lifting winch.

  Aluminium Lifting Gantry - Specifications:

  • SWL: 3000kg

  • Support height: 2200 - 3600mm

  • Support height increment: 200mm

  • Beam length: 3mtrs

  • Working span: 1770mm

  • Bottom span: 2496mm

  • Total weight of gantry: 144.5kg

  • Fully certified and tested

  Full range of additional products available such as parking jacks, extra trolleys - please contact us for more details.

  *Dispatched within 72 hours from time of order*

• Specifications

• Additional Information

  Data sheet Data Sheet 2 Instruction Manual
• Price Breaks
• 3000kg Aluminium Gantry, 3mtr beam, 2200-3600mm (Net Weight Per Item: 144.50kg):

  Quantity:

  1+

  (£4,302.06 inc VAT)
