MOD6 Spreader Beam 6tonne 0.6mtr to 3.6mtr

More From This Brand

Add to New List

• Product Info

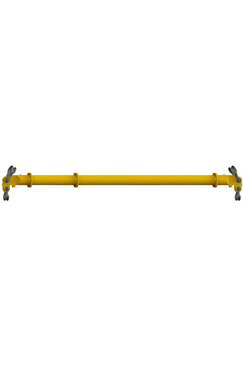

• MOD6 6tonne Spreader Beam

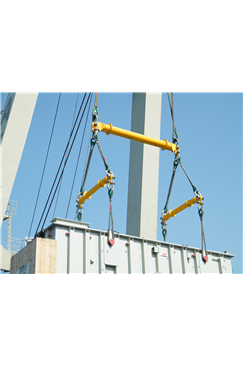

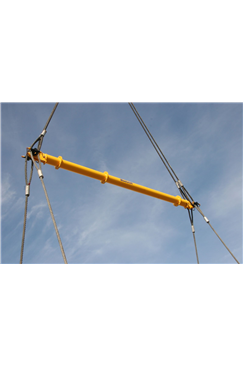

  Modular Spreader Beams provide the ideal solution for most lifting requirements - versatile and cost-effective

  The modular configuration and interchangeable components enable these Spreader Beams to be reused over many lists

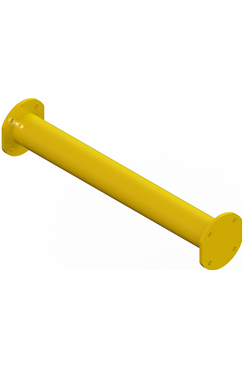

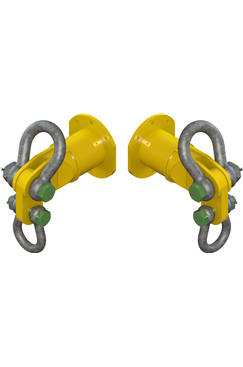

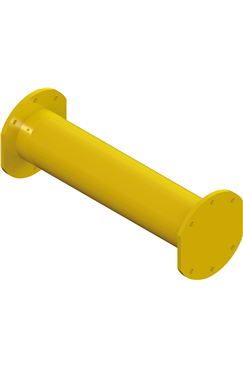

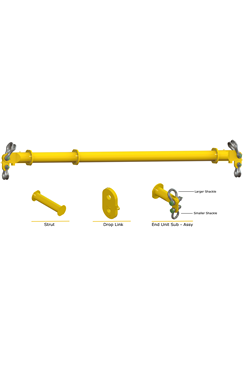

  The MOD6 Spreader Beam consists of 1x pair of 200mm End Units and Drop Links, 2x 4.75ton Screw Pin Alloy Bow Shackles and 2x 3.25ton Screw Pin Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM AT 6TONNE = 3.6MTRS)

  Please see attached user Instructions for Beam configurations - the recommended configuration that is suggested will be supplied as standard

  Different configurations and extra struts are available, please contact our sales team for more information

  MOD12 - BEAM SPECIFICATION

  • Rated at 6tonne SWL at 3.6mtr span (30° 'Sling to Vertical' angle). See Load Table for WLL at longer spans
  • For 45° 'Sling to Vertical' angle - please see loading chart for SWL
  • End Units & Drop Links are rated at 3tonnes WLL each (12tonnes combined capacity)
  • Bolt tightening torque: 60Nm.  Spanner size required: 17mm
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner
  • Fully certified and tested
  • Used by many of the leading Rental and Crane Hire companies
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
  • Available for hire at very competitive rates (please contact us)



• Specifications
• Brand Modulift

  Inspection Period (From date of first use) 6 months

  Additional Information

  User Instructions
• Price Breaks
• 0.6mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 13.50kg):

  Quantity:

  1+

  (£963.55 inc VAT)
  0.8mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 16.20kg):

  Quantity:

  1+

  (£1,135.09 inc VAT)
  1mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 16.20kg):

  Quantity:

  1+

  (£977.94 inc VAT)
  1.2mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 18.90kg):

  Quantity:

  1+

  (£1,153.21 inc VAT)
  1.4mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 18.90kg):

  Quantity:

  1+

  (£1,006.67 inc VAT)
  1.6mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 21.60kg):

  Quantity:

  1+

  (£1,186.15 inc VAT)
  1.8mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 24.30kg):

  Quantity:

  1+

  (£1,329.84 inc VAT)
  2mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 21.60kg):

  Quantity:

  1+

  (£1,204.42 inc VAT)
  2.2mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 27.00kg):

  Quantity:

  1+

  (£1,373.11 inc VAT)
  2.4mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 27.00kg):

  Quantity:

  1+

  (£1,229.59 inc VAT)
  2.6mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 29.70kg):

  Quantity:

  1+

  (£1,401.73 inc VAT)
  2.8mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 32.40kg):

  Quantity:

  1+

  (£1,579.07 inc VAT)
  3mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 32.40kg):

  Quantity:

  1+

  (£1,423.44 inc VAT)
  3.2mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 35.10kg):

  Quantity:

  1+

  (£1,596.04 inc VAT)
  3.4mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 35.10kg):

  Quantity:

  1+

  (£1,452.49 inc VAT)
  3.6mtr MOD6 6tonne Spreader Beam (Net Weight Per Item: 37.80kg):

  Quantity:

  1+

  (£1,624.93 inc VAT)
