MOD50 Spreader Beam 50tonne 2mtr to 13mtr

More From This Brand

Add to New List

• Product Info

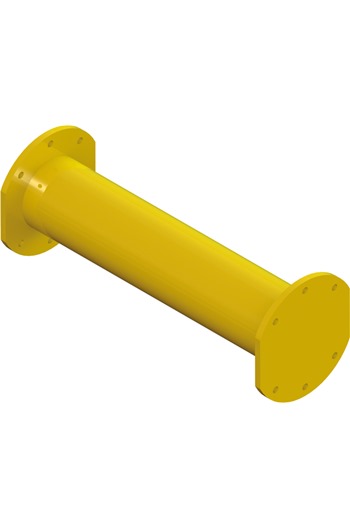

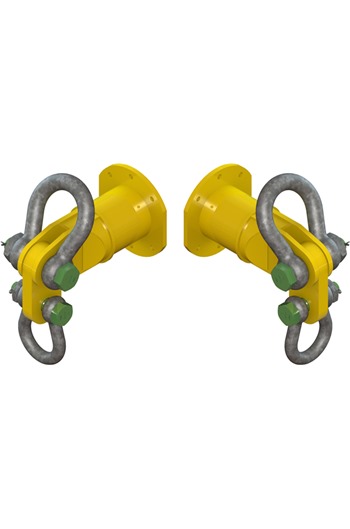

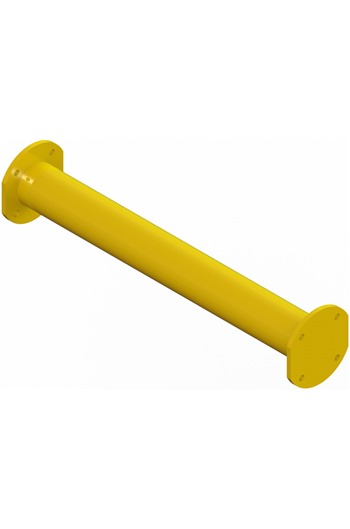

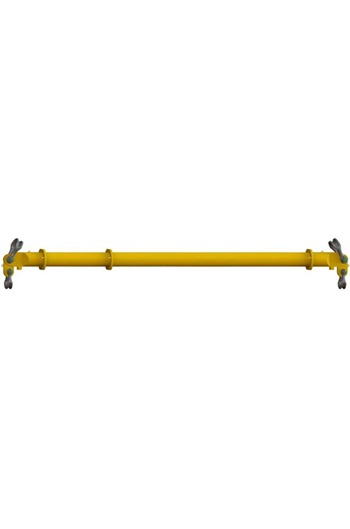

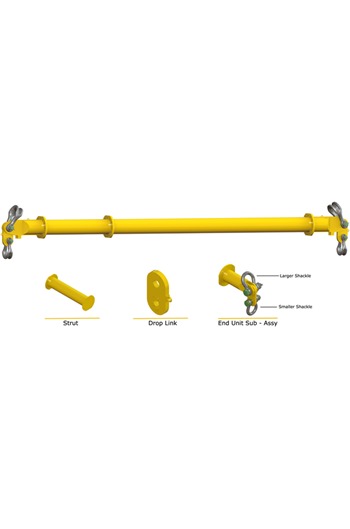

• The MOD50 Spreader Beam consists of 1x pair of 500mm End Units and Drop Links, 2x 35ton Screw Pin Alloy Bow Shackles and 2x 25ton Screw Pin Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM = 13MTRS), please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

  MOD50-2M-RS - 2x 500mm End Units, 1x 1000mm strut

  MOD50-3M-RS - 2x 500mm End Units, 1x 2000mm strut

  MOD50-4M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut

  MOD50-5M-RS - 2 x 500mm End Units, 2x 2000mm struts

  MOD50-6M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 1000mm strut

  MOD50-7M-RS - 2x 500mm End Units, 3x 2000mm struts

  MOD50-8M-RS - 2x 500mm End Units, 3x 2000mm struts, 1x 1000mm strut

  MOD50-9M-RS - 2x 500mm End Units, 2x 4000mm struts

  MOD50-10M-RS - 2x 500mm End Units, 2x 4000mm struts, 1x 1000mm strut

  MOD50-11M-RS - 2x 500mm End Units, 2x 4000mm struts, 1x 2000mm strut

  MOD50-12M-RS - 2x 500mm End units, 2x 4000mm struts, 1x 2000mm strut, 1x 1000mm strut

  Longer lengths available - please contact us for a price

  • Rated at 50tonne SWL at 8mtr span (30degree 'Sling to Vertical' angle) - See Load Table for SWL at longer spans as beam de-rates
  • For 45degree 'Sling to Vertical' angle - please see loading chart for SWL
  • Available for hire at very competitive rates (please contact us)
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details

  ​



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• 2mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 215.50kg):

  Quantity:

  1+

  (£3,969.32 inc VAT)
  3mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 244.50kg):

  Quantity:

  1+

  (£4,313.50 inc VAT)
  4mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 297.50kg):

  Quantity:

  1+

  (£5,162.74 inc VAT)
  5mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 326.50kg):

  Quantity:

  1+

  (£5,463.32 inc VAT)
  6mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 379.50kg):

  Quantity:

  1+

  (£6,313.42 inc VAT)
  7mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 408.50kg):

  Quantity:

  1+

  (£6,613.14 inc VAT)
  8mtr MOD50 50tonne Spreader Beam (Net Weight Per Item: 461.50kg):

  Quantity:

  1+

  (£7,463.70 inc VAT)
  9mtr MOD50 42tonne Spreader Beam (Net Weight Per Item: 442.50kg):

  Quantity:

  1+

  (£6,614.16 inc VAT)
  10mtr MOD50 34tonne Spreader Beam (Net Weight Per Item: 495.50kg):

  Quantity:

  1+

  (£7,464.54 inc VAT)
  11mtr MOD50 26tonne Spreader Beam (Net Weight Per Item: 524.50kg):

  Quantity:

  1+

  (£7,789.44 inc VAT)
  12mtr MOD50 22tonne Spreader Beam (Net Weight Per Item: 577.50kg):

  Quantity:

  1+

  (£8,627.33 inc VAT)
  13mtr MOD50 18tonne Spreader Beam (Net Weight Per Item: 606.50kg):

  Quantity:

  1+

  (£8,939.27 inc VAT)
