MOD34 Spreader Beam 34tonne 2mtr to 8mtr

More From This Brand

Add to New List

• Product Info

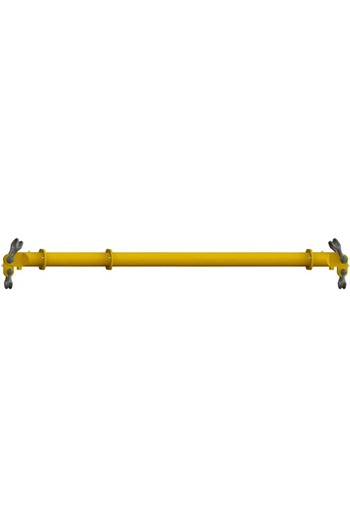

• MOD34 34tonne Spreader Beam

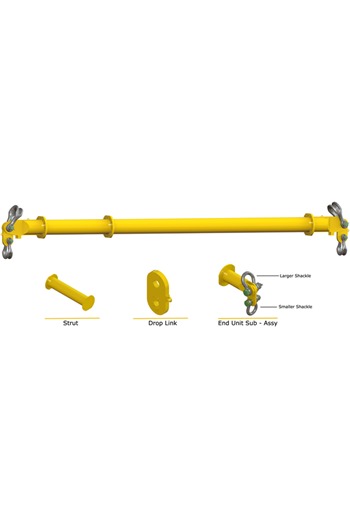

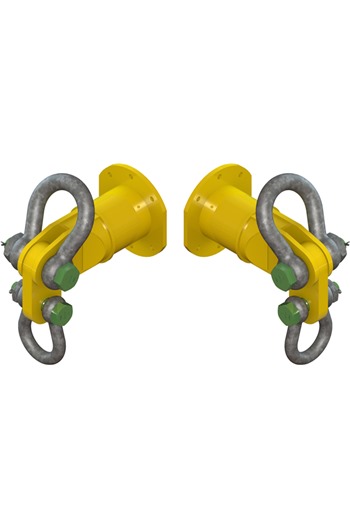

  The MOD34 Spreader Beam consists of 1x pair of 500mm End Units and Drop Links, 2x 25ton Screw Pin Alloy Bow Shackles and 2x 17ton Screw Pin Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM = 8MTRS), please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

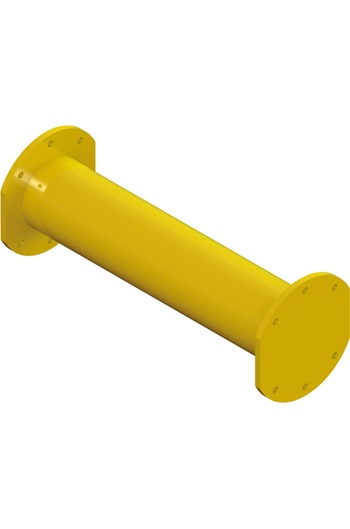

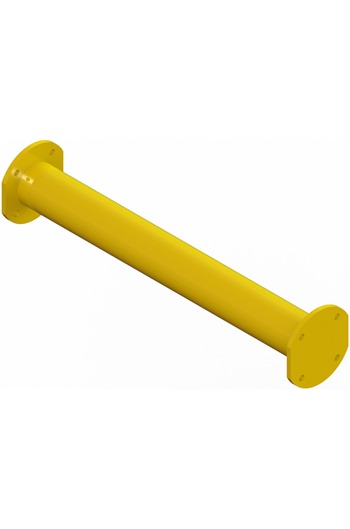

  MOD34-2M-RS - 2x 500mm End Units, 1x 1000mm strut

  MOD34-2.5M-RS - 2x 500mm End Units, 1x 1000mm strut, 1x 500mm strut

  MOD34-3M-RS - 2x 500mm End Units, 1x 2000mm strut

  MOD34-3.5M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 500mm strut

  MOD34-4M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut

  MOD34-4.5M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut, 1x 500mm strut

  MOD34-5M-RS - 2 x 500mm End Units, 2x 2000mm struts

  MOD34-5.5M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 500mm strut

  MOD34-6M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 1000mm strut

  MOD34-6.5M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 1000mm strut, 1x 500mm strut

  MOD34-7M-RS - 2x 500mm End Units, 3x 2000mm struts

  MOD34-7.5M-RS - 2x 500mm End Units, 3x 2000mm struts, 1x 500mm strut

  MOD34-8M-RS - 2x 500mm End Units, 3x 2000mm struts, 1x 1000mm strut

  MOD34 - BEAM SPECIFICATION

  • Rated at 34tonne SWL at 5mtr span (30° 'Sling to Vertical' angle) - See Load Table for SWL at longer spans as beam de-rates
  • For 45° 'Sling to Vertical' angle - please see loading chart for SWL
  • Fully certified and tested
  • Used by many of the leading Rental and Crane Hire companies
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
  • Available for hire at very competitive rates (please contact us)





• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• 2mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 135.00kg):

  Quantity:

  1+

  (£3,102.96 inc VAT)
  2.5mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 155.00kg):

  Quantity:

  1+

  (£3,523.21 inc VAT)
  3mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 155.00kg):

  Quantity:

  1+

  (£3,368.02 inc VAT)
  3.5mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 175.00kg):

  Quantity:

  1+

  (£3,763.37 inc VAT)
  4mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 186.00kg):

  Quantity:

  1+

  (£3,858.44 inc VAT)
  4.5mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 206.00kg):

  Quantity:

  1+

  (£4,296.95 inc VAT)
  5mtr MOD34 34tonne Spreader Beam (Net Weight Per Item: 206.00kg):

  Quantity:

  1+

  (£4,080.37 inc VAT)
  5.5mtr MOD34 31tonne Spreader Beam (Net Weight Per Item: 226.00kg):

  Quantity:

  1+

  (£4,518.85 inc VAT)
  6mtr MOD34 26tonne Spreader Beam (Net Weight Per Item: 237.00kg):

  Quantity:

  1+

  (£4,602.13 inc VAT)
  6.5mtr MOD34 22tonne Spreader Beam (Net Weight Per Item: 257.00kg):

  Quantity:

  1+

  (£5,052.58 inc VAT)
  7mtr MOD34 19tonne Spreader Beam (Net Weight Per Item: 257.00kg):

  Quantity:

  1+

  (£4,835.92 inc VAT)
  7.5mtr MOD34 16tonne Spreader Beam (Net Weight Per Item: 277.00kg):

  Quantity:

  1+

  (£5,274.49 inc VAT)
  8mtr MOD34 14tonne Spreader Beam (Net Weight Per Item: 288.00kg):

  Quantity:

  1+

  (£5,369.56 inc VAT)
