MOD24 Spreader Beam 24tonne 1.5mtr to 6mtr

More From This Brand

Add to New List

• Product Info

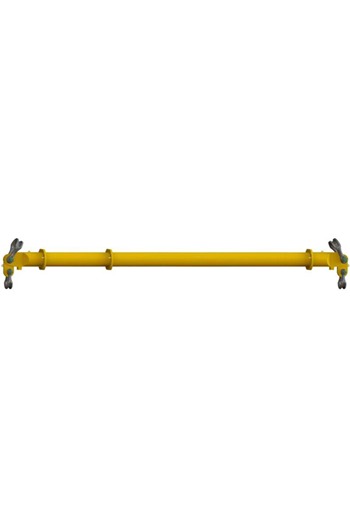

• MOD24 24tonne Spreader Beam

  Modular Spreader Beams provide the ideal solution for most lifting requirements - versatile and cost-effective

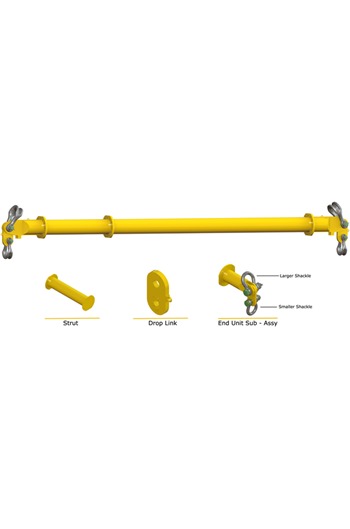

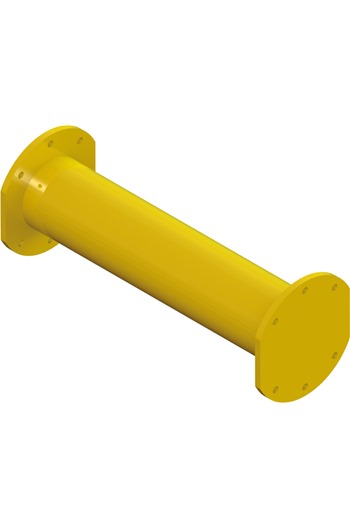

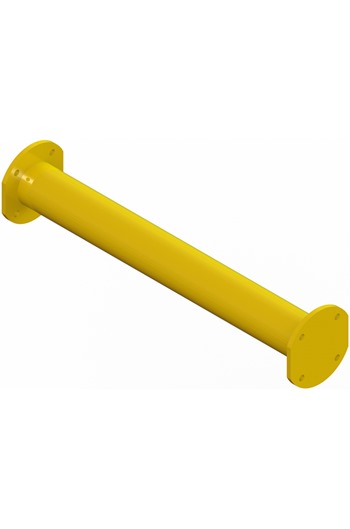

  The MOD24 Spreader Beam consists of 1x pair of 500mm End Units and Drop Links, 2x 17ton Alloy Bow Shackles and 2x 12ton Alloy Bow Shackles, with intermediate struts that can be bolted into the assembly to achieve different spans (MAX SPAN OF BEAM = 6MTRS), please see below for configurations (different configurations and extra struts are available, please contact our sales team for more information):-

  MOD24-1.5M-RS - 2x 500mm End Units, 1x 500mm strut

  MOD24-2M-RS - 2x 500mm End Units, 1x 1000mm strut

  MOD24-2.5M-RS  - 2x 500mm End Units, 1x 1000mm strut, 1x 500mm strut

  MOD24-3M-RS - 2x 500mm End Units, 1x 2000mm strut

  MOD24-3.5M-RS - 2x 500mm End Units,  1x 2000mm strut, 1x 500mm strut

  MOD24-4M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut

  MOD24-4.5M-RS - 2x 500mm End Units, 1x 2000mm strut, 1x 1000mm strut, 1x 500mm strut

  MOD24-5M-RS - 2x 500mm End Units, 2x 2000mm struts

  MOD24-5.5M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 500mm strut

  MOD24-6M-RS - 2x 500mm End Units, 2x 2000mm struts, 1x 1000mm strut



  MOD24 - BEAM SPECIFICATION

  • Rated at 24tonne SWL at 4.5mtr span (30° 'Sling to Vertical' angle) - See Load Table for SWL at longer spans as beam de-rates
  • For 45° 'Sling to Vertical' angle - please see loading chart for SWL

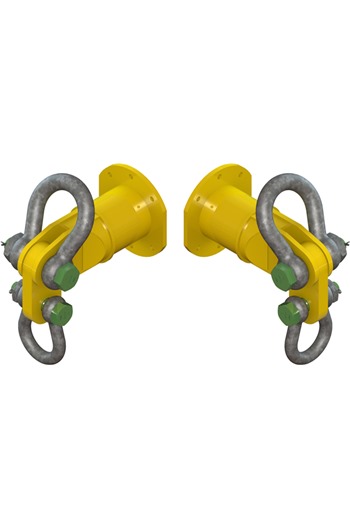

  • End Units & Drop Links are rated at 12tonnes WLL each (24tonnes combined capacity)
  • Bolt tightening torque: 150Nm.  Spanner size required: 30mm
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner
  • Fully certified and tested
  • Used by many of the leading Rental and Crane Hire companies
  • Lifting Slings sold separately - please see our Webbing Sling/Roundsling/Wire Rope Sling section for more details
  • Available for hire at very competitive rates (please contact us)

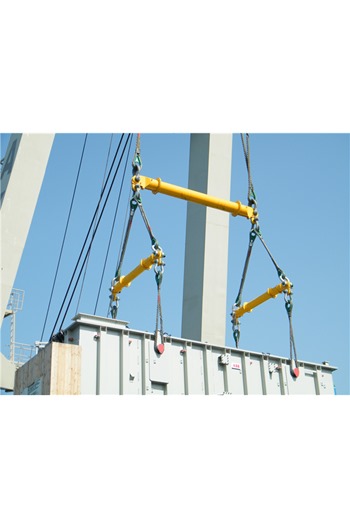

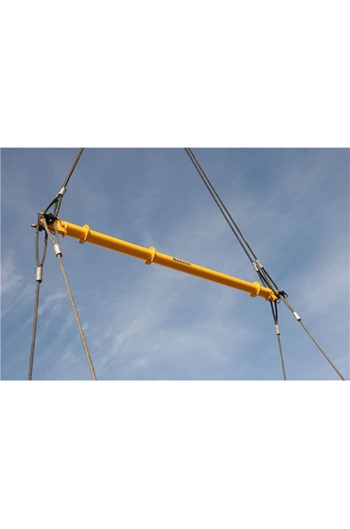

  We were recently contacted by Skyklass, a London-based construction company, who wanted to hire some of our lifting equipment. Check out the MOD24 Spreader Beam in action here!





• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• 1.5mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 86.00kg):

  Quantity:

  1+

  (£2,487.44 inc VAT)
  2.5mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 110.00kg):

  Quantity:

  1+

  (£2,941.80 inc VAT)
  2mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 94.00kg):

  Quantity:

  1+

  (£2,584.62 inc VAT)
  3.5mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 127.00kg):

  Quantity:

  1+

  (£3,096.86 inc VAT)
  3mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 111.00kg):

  Quantity:

  1+

  (£2,728.76 inc VAT)
  4mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 135.00kg):

  Quantity:

  1+

  (£3,188.03 inc VAT)
  4.5mtr MOD24 24tonne Spreader Beam (Net Weight Per Item: 151.00kg):

  Quantity:

  1+

  (£3,556.13 inc VAT)
  5mtr MOD24 21tonne Spreader Beam (Net Weight Per Item: 152.00kg):

  Quantity:

  1+

  (£3,343.08 inc VAT)
  5.5mtr MOD24 17tonne Spreader Beam (Net Weight Per Item: 168.00kg):

  Quantity:

  1+

  (£3,711.18 inc VAT)
  6mtr MOD24 14tonne Spreader Beam (Net Weight Per Item: 176.00kg):

  Quantity:

  1+

  (£3,802.34 inc VAT)
