CAMLOK PP Pile Pulling Clamps 3000kg & 8000kg

More From This Brand

Add to New List

• Product Info

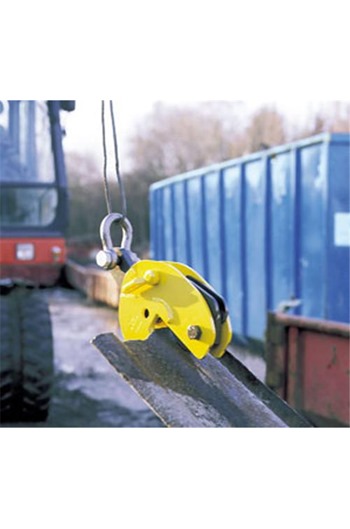

• Camlok PP Pile Pulling Clamp

  The PP Pile Pulling Clamps are designed to pull out driven piles or trench shielding

  The Clamps have a narrow opening and a deep slot to ensure that the pile is gripped firmly.  It is extremely difficult to determine the forces required to pull out driven piles so it is recommended that a load indicator is used to ensure the WLL of the Clamp is not exceeded

  The PP Clamp is supplied as standard with a double locking mechanism to ensure that the Clamp remains 'locked on' and cannot become unlocked during the extraction of the pile

  Available in 3000kg & 8000kg capacity

  Model PP3

  • WLL: 3000kg
  • Jaw capacity: 0-16mm
  • Throat depth: 147mm
  • Weight: 12kg

  Model PP8

  • WLL: 8000kg
  • Jaw capacity: 0-30mm
  • Throat depth: 194mm
  • Weight: 28kg

  Fully tested and certified

  MADE IN THE UK

  DELIVERY IS 4-5 WEEKS FROM DATE OF ORDER



• Price Breaks
• CAMLOK PP3 3000kg Pile Pulling Clamp (Net Weight Per Item: 12.00kg):

  Quantity:

  1+

  (£1,169.95 inc VAT)
  CAMLOK PP8 8000kg Pile Pulling Clamp (Net Weight Per Item: 28.00kg):

  Quantity:

  1+

  (£1,310.60 inc VAT)
