CAMLOK LJ 'NON-MARKING' Plate Clamp

More From This Brand

Add to New List

• Product Info

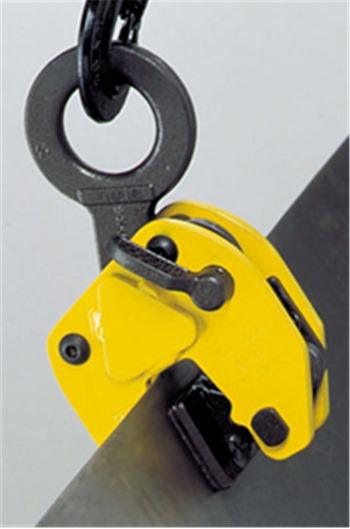

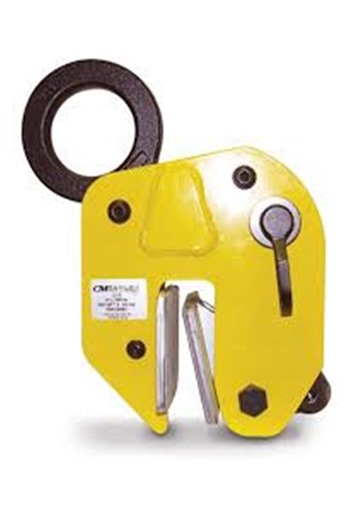

• CAMLOK LJ 'NON-MARKING'  Plate Clamps

  Working load limit (WLL) 500kg or 1500kg

  The LJ non-marking plate clamps are designed for lifting, turning and transporting of all structural steel plates, stainless steel, iron, timber and aluminium without marking, damaging or leaving indentations on the surface. It can also be used for plates with extremely hard surfaces

  The LJ clamp can be used on thin plates. Minimum load will not affect the LJ clamps as they do not have teeth for bite. However some load is required to combat friction in the clamp. Extra care must be taken when lifting plates in the lower 20% of their rated capacity. Thin plates are best lifted with the fixed jaw on top when performing a horizontal to vertical lift

  As standard these clamps come with leather lined pads and jaws, however there is also the option of having rubber or plastic pads fitted for use with polished materials. Contact our sales team for details

  NB: The surface of the plate must be free of oil, grease or any other liquid to ensure safe transport

  Fully tested and certified

  MADE IN THE UK

  DELIVERY IS 10-14 days FROM RECEIPT OF ORDER

• Specifications

• Additional Information

  Data sheet
• Price Breaks
• CAMLOK LJ 'NON-MARKING' Plate Clamp 500kg (Net Weight Per Item: 3.50kg):

  Quantity:

  1+

  (£542.57 inc VAT)
  CAMLOK LJ 'NON-MARKING' Plate Clamp 1500kg (Net Weight Per Item: 12.00kg):

  Quantity:

  1+

  (£879.60 inc VAT)
