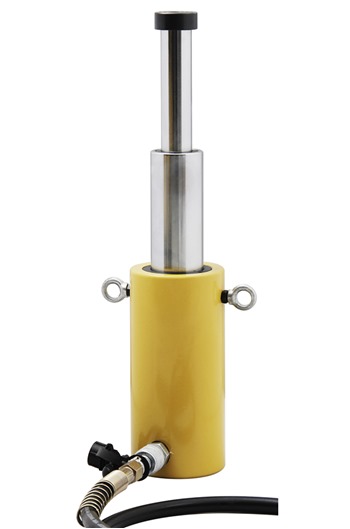

ActionRam Hydraulic Telescopic Cylinder 16.6-44.5tonne, 300mm Stroke

More From This Brand

Add to New List

• Product Info

• ActionRam Hydraulic Telescopic Cylinder 16.6-44.5tonne, 300mm Stroke

  For use where there is a minimum clearance for the insertion of a Cylinder and a very high lift is necessary

  Two stage lift

  Single acting, load return

  High strength alloy steel for durability

  Chrome plated piston resists wear and corrosion

  Female coupling

  Fitted with two Eyebolts which act as a carry handle

  Maximum pressure 700 Bar

  Model: HHYG-15300D

  Recommended Hand Pump to operate is HHB-700-2000CC

  Capacity: 44.5tonne (Stage 1), 16.6tonne (Stage 2)

  Total stroke: 300mm (150mm Stage 1, 150mm Stage 2)

  Closed height: 280mm

  Outside diameter: 125mm

  Oil capacity: 1308cm³

  Weight: 28kg

• Specifications
• Brand ActionRam

  Product Weight 28kg

  Product Colour Black & Yellow

  W.L.L. 15tonne

  Stroke 300mm

  Oil Capacity 1308cc

  Maximum Operating Pressure 700bar

  Closed Height 280mm

  Acting Single Acting Cylinder

  Supplied With Eye Bolts

  Available for Hire No

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Data Sheet Instruction Manual
