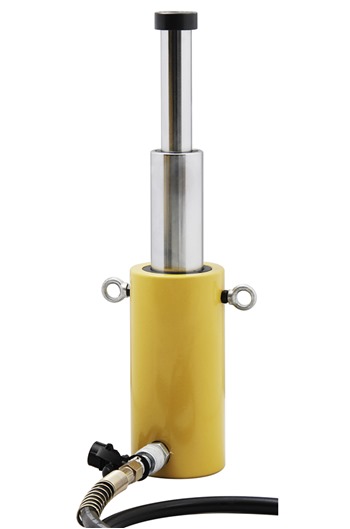

ActionRam Hydraulic Telescopic Cylinder 11.1-30.9tonne, 270mm Stroke

More From This Brand

Add to New List

• Product Info

• ActionRam Hydraulic Telescopic Cylinder 11.1-30.9tonne, 270mm Stroke

  For use where there is a minimum clearance for the insertion of a Cylinder and a very high lift is necessary

  Two stage lift

  Single acting, load return

  High strength alloy steel for durability

  Chrome plated piston resists wear and corrosion

  Female coupling

  Fitted with two Eyebolts which act as a carry handle

  Maximum pressure 700 Bar

  Recommended Hand Pump to operate this is HHB-700-2000CC

  Model: HHYG-10270D

  Capacity: 30.9tonne (Stage 1), 11.1tonne (Stage 2)

  Total stroke: 270mm (135mm Stage 1, 135mm Stage 2)

  Closed height: 250mm

  Outside diameter: 110mm

  Oil capacity: 810cm³

  Weight: 18kg

• Specifications
• Brand ActionRam

  Product Weight 18kg

  Product Colour Black & Yellow

  W.L.L. 10tonne

  Stroke 270mm

  Oil Capacity 810cc

  Maximum Operating Pressure 700bar

  Closed Height 250mm

  Acting Single Acting Cylinder

  Available for Hire No

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Data Sheet Instruction Manual
• Price Breaks
• ActionRam Hydraulic Telescopic Cylinder 11.1-30.9tonne, 270mm Stroke (Net Weight Per Item: 16.00kg):

  Quantity:

  1+

  (£290.40 inc VAT)
