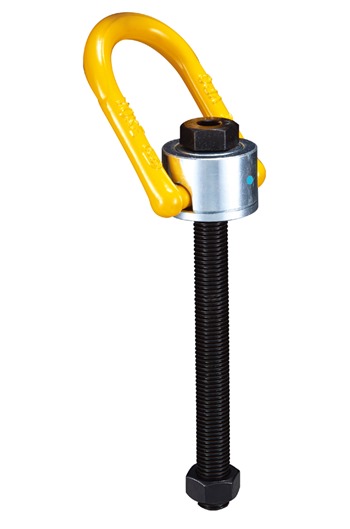

Yoke Swivel Lifting Point Type 231 Long Metric Thread

More From This Brand

Add to New List

• Product Info

• Yoke Swivel Lifting Point Type 231 Long Metric Thread

  • Rotates through 360° and pivots 180°
  • Manufactured from alloy steel, quenched and tempered
  • Manufactured and tested in accordance with EN1677-1
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread (ASME / ANSI B18.3.1M)
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 1.5 times the WLL
  • Design Factor 4 : 1
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required
  • Available in thread sizes from M8 to M42

  Please see attached data sheet for dimensions and loading chart



• Specifications

• Additional Information

  Data sheet
• Price Breaks
• Yoke M8 0.5t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 0.30kg):

  Quantity:

  1 - 1

  (£86.96 inc VAT)

  Quantity:

  2 - 3

  (£85.66 inc VAT)

  Quantity:

  4 - 7

  (£84.79 inc VAT)

  Quantity:

  8+

  (£83.92 inc VAT)
  Yoke M10 0.7t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 0.40kg):

  Quantity:

  1 - 1

  (£90.23 inc VAT)

  Quantity:

  2 - 3

  (£88.87 inc VAT)

  Quantity:

  4 - 7

  (£87.97 inc VAT)

  Quantity:

  8+

  (£87.07 inc VAT)
  Yoke M12 1t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 0.40kg):

  Quantity:

  1 - 1

  (£95.45 inc VAT)

  Quantity:

  2 - 3

  (£94.02 inc VAT)

  Quantity:

  4 - 7

  (£93.06 inc VAT)

  Quantity:

  8+

  (£92.11 inc VAT)
  Yoke M16 2t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 1.10kg):

  Quantity:

  1 - 1

  (£114.35 inc VAT)

  Quantity:

  2 - 3

  (£112.63 inc VAT)

  Quantity:

  4 - 7

  (£111.49 inc VAT)

  Quantity:

  8+

  (£110.35 inc VAT)
  Yoke M20 3t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 1.40kg):

  Quantity:

  1 - 1

  (£114.47 inc VAT)

  Quantity:

  2 - 3

  (£112.75 inc VAT)

  Quantity:

  4 - 7

  (£111.61 inc VAT)

  Quantity:

  8+

  (£110.46 inc VAT)
  Yoke M24 5t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 3.20kg):

  Quantity:

  1 - 1

  (£156.29 inc VAT)

  Quantity:

  2 - 3

  (£153.94 inc VAT)

  Quantity:

  4 - 7

  (£152.38 inc VAT)

  Quantity:

  8+

  (£150.82 inc VAT)
  Yoke M30 7.8t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 6.30kg):

  Quantity:

  1 - 1

  (£277.49 inc VAT)

  Quantity:

  2 - 3

  (£273.33 inc VAT)

  Quantity:

  4 - 7

  (£270.55 inc VAT)

  Quantity:

  8+

  (£267.78 inc VAT)
  Yoke M36 12.5t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 10.90kg):

  Quantity:

  1 - 1

  (£561.77 inc VAT)

  Quantity:

  2 - 3

  (£553.34 inc VAT)

  Quantity:

  4 - 7

  (£547.72 inc VAT)

  Quantity:

  8+

  (£542.11 inc VAT)
  Yoke M42 15.6t Swivel Lifting Point Type 231 Long Metric Thread (Net Weight Per Item: 13.90kg):

  Quantity:

  1 - 1

  (£628.97 inc VAT)

  Quantity:

  2 - 3

  (£619.53 inc VAT)

  Quantity:

  4 - 7

  (£613.24 inc VAT)

  Quantity:

  8+

  (£606.95 inc VAT)
