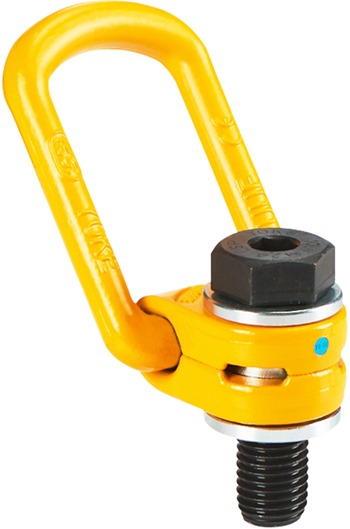

Yoke Swivel Lifting Point Type 212 UNC Thread

More From This Brand

Add to New List

• Product Info

• Yoke Swivel Lifting Point Type 212 UNC Thread

  • Rotates through 360° and pivot 90°
  • Manufactured from alloy steel, quenched and tempered
  • Manufactured and tested in accordance with EN 1677-1
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread (ASME / ANSI B18.3.1M)
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 1.5 times the WLL
  • Design Factor 4 : 1
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required
  • Available in thread sizes from 1/2" to 1-1/2"

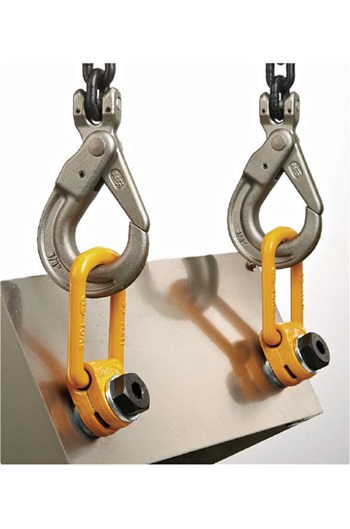

  Lifting Point uses can be as follows:-

  • Suited for lifting objects with no obvious attachment points
  • Mold and die handling
  • Pump and valve handling
  • Ideal for lashing attachment points
  • Suitable for attachment to lifting beams and spreader beams

  Please see attached data sheet for dimensions and loading chart



• Price Breaks
• Yoke 1/2" 1t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£64.18 inc VAT)

  Quantity:

  2 - 3

  (£63.21 inc VAT)

  Quantity:

  4 - 7

  (£62.57 inc VAT)

  Quantity:

  8+

  (£61.93 inc VAT)
  Yoke 5/8" 1.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 0.50kg):

  Quantity:

  1 - 1

  (£71.21 inc VAT)

  Quantity:

  2 - 3

  (£70.14 inc VAT)

  Quantity:

  4 - 7

  (£69.43 inc VAT)

  Quantity:

  8+

  (£68.72 inc VAT)
  Yoke 3/4" 2.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.30kg):

  Quantity:

  1 - 1

  (£85.99 inc VAT)

  Quantity:

  2 - 3

  (£84.70 inc VAT)

  Quantity:

  4 - 7

  (£83.84 inc VAT)

  Quantity:

  8+

  (£82.98 inc VAT)
  Yoke 7/8" 2.5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.30kg):

  Quantity:

  1 - 1

  (£87.24 inc VAT)

  Quantity:

  2 - 3

  (£85.93 inc VAT)

  Quantity:

  4 - 7

  (£85.06 inc VAT)

  Quantity:

  8+

  (£84.19 inc VAT)
  Yoke 1" 4t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 1.40kg):

  Quantity:

  1 - 1

  (£87.80 inc VAT)

  Quantity:

  2 - 3

  (£86.49 inc VAT)

  Quantity:

  4 - 7

  (£85.61 inc VAT)

  Quantity:

  8+

  (£84.73 inc VAT)
  Yoke 1-1/4" 5t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 3.10kg):

  Quantity:

  1 - 1

  (£168.17 inc VAT)

  Quantity:

  2 - 3

  (£165.65 inc VAT)

  Quantity:

  4 - 7

  (£163.96 inc VAT)

  Quantity:

  8+

  (£162.28 inc VAT)
  Yoke 1-1/2" 8t Swivel Lifting Point Type 212 UNC Thread (Net Weight Per Item: 5.80kg):

  Quantity:

  1 - 1

  (£312.64 inc VAT)

  Quantity:

  2 - 3

  (£307.95 inc VAT)

  Quantity:

  4 - 7

  (£304.82 inc VAT)

  Quantity:

  8+

  (£301.69 inc VAT)
