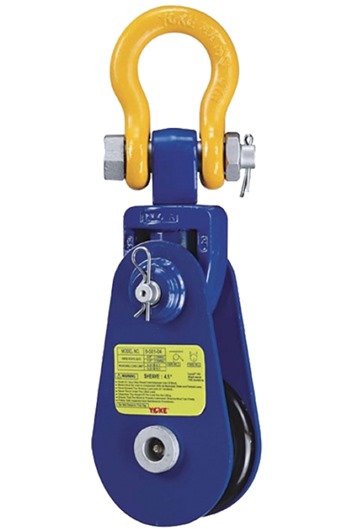

Yoke 8tonne 6" Snatch Block with Captive Shackle

More From This Brand

Add to New List

• Product Info

• Yoke 8tonne 6" Snatch Block with Captive Shackle

  Snatch blocks are typically used for short term and intermittent lifting applications where loads are required to be lifted and or moved horizontally

  They are easy to transport from location to location and are relatively quick and easy to rig

  Features:-

  • YOKE snatch blocks are manufactured of the highest quality forged alloy steel
  • Designed with a safety factor 4:1
  • Fatigue rated 20,000 cycles at 1.5 times the WLL
  • Snatch Blocks are supplied with bronze bushings and grease fitting nipples for ease of use and extended shelf life
  • Part number, wire rope size and working load limit are marked on each block
  • Permanent batch codes link to test certificates for easy traceability
  • Meets or exceeds all requirements of ASME B30.26-2010
  • ABS Type Approval Ref. TA1060896-PDA
  • Capacity: 8tonne
  • Sheave diameter: 152mm
  • Wire rope diameter: 16-19mm

  Please see attached data sheet for dimensions and loading chart



• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Yoke 8tonne 6" Snatch Block with Captive Shackle (Net Weight Per Item: 13.20kg):

  Quantity:

  1+

  (£407.17 inc VAT)
