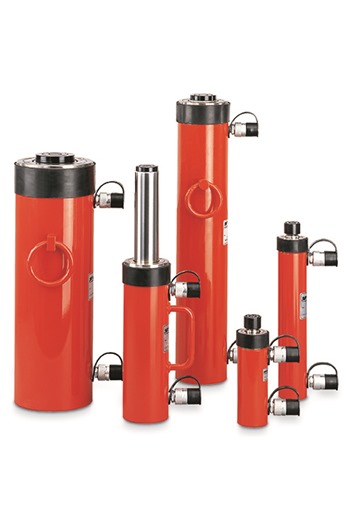

Yale YH 200tonne Double Acting Universal Hydraulic Cylinder 150mm stroke

More From This Brand

Add to New List

• Product Info

• These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed

  Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required

  Key Features

  ---

  • Yale ChroMo-Design
  • Operating pressure max. 700 bar
  • Double-acting with hydraulic return
  • Long bronze piston guidings
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
  • Hard-chromium plated piston with replaceable, heat treated saddle
  • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
  • Interchangeable hardened saddle
  • Dirt wiper protects against dirt
  • Fitted with carrying handle
  • Oil port thread 3/8 NPT
  • Incl. 2x female coupler halves CFY-1

  Specifications

  ---

  • Model: YH-200/150
  • Cylinder size: 200tonne
  • Capacity push: 2000kN
  • Capacity pull: 900kN
  • Stroke: 150mm
  • Closed height: 410mm
  • Cylinder outside diameter: 250mm
  • Effective plunger area push: 286cm²
  • Effective plunger area pull: 128.7cm²
  • Oil volume max: 4253cm³
  • Weight: 137kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Yale YH 200tonne Double Acting Universal Hydraulic Cylinder 150mm stroke (Net Weight Per Item: 137.00kg):

  Quantity:

  1 - 1

  (£6,942.80 inc VAT)

  Quantity:

  2 - 3

  (£6,838.66 inc VAT)

  Quantity:

  4+

  (£6,762.29 inc VAT)
