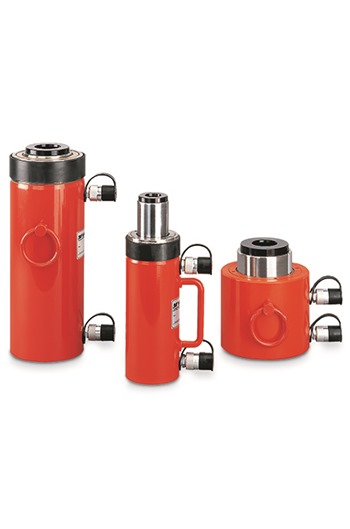

Yale YCH 33tonne Double Acting Hollow Cylinder 250mm Stroke

More From This Brand

Add to New List

• Product Info

• Basically, the applications are the same as for the single acting hollow cylinders, but for this model range the return of the piston is done hydraulically by means of the second oil port. These double-acting hollow cylinders are used when the piston needs to be retracted quickly e.g. with high-cycle pulling applications

  Hollow cylinders are used as the power component within hydraulic puller sets, for prestressing anker bolts, removing axles, shafts, bushings, extracting tubes, as well as for heavy-duty pulling applications

  Key Features

  ---

  • Yale ChroMo-Design
  • Operating pressure max. 700 bar
  • Double-acting with spring return
  • With large centre hole diameter
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
  • Hard-chromium plated piston with replaceable, heat treated saddle
  • Metric mounting threads at cylinder body and inside of piston
  • Stop ring prevents overtravel of the piston up to full operating pressure
  • Interchangeable hardened saddle
  • With inner and outer dirt wipers
  • Supplied with carrying handle
  • Oil port thread 3/8 NPT
  • Incl. 2x female coupler half CFY-1

  Specifications

  ---

  • Model: YCH-33/250
  • Cylinder size: 33tonne
  • Capacity push: 335kN
  • Capacity pull: 180kN
  • Stroke: 250mm
  • Closed height: 415mm
  • Cylinder outside diameter: 114mm
  • Centre hole diameter: 33mm
  • Effective plunger area: 47.9cm²
  • Oil volume max: 1200cm³
  • Weight: 25kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Yale YCH 33tonne Double Acting Hollow Cylinder 250mm Stroke (Net Weight Per Item: 25.00kg):

  Quantity:

  1 - 1

  (£3,068.76 inc VAT)

  Quantity:

  2 - 3

  (£3,022.73 inc VAT)

  Quantity:

  4+

  (£2,988.97 inc VAT)
