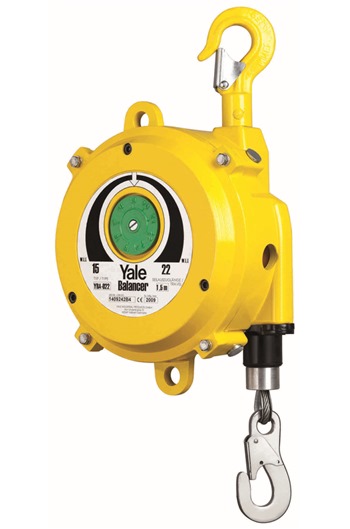

Yale YBA Series Long Lift Spring Balancers 9-70kg

More From This Brand

Add to New List

• Product Info

• The Yale YBA Spring Balancer allows the worker to mover suspended tools or objects up or down with very little effort.  Depending on the spring adjustment, the object will remain in position or retract when no force is applied

  With a spiral groove on a tapered drum, the winding radius is increased to match the torque build-up of the spring, thus neutralising it and achieving a balanced condition.  This is the main difference between Spring Balancers and retractors

  Retractors are designed to retract the cable when no force is applied.  An amount of downward force must be continually applied to keep the suspended object as it's extended position.  The torque output of the rewind spring increases as the cable is extended, and retracting the suspended object to the uppermost adjusted position when released

  The YBA series has all the features of the YBF series, but also has a wire arrest system.  This is ideal for applications where there is the possibility of damage to the wire strands, e.g fabrication, welding production lines and anywhere where there is a repetitive process

  Capacities from 9-70kg available

  These models have a longer lift than the standard YBA Spring Balancers

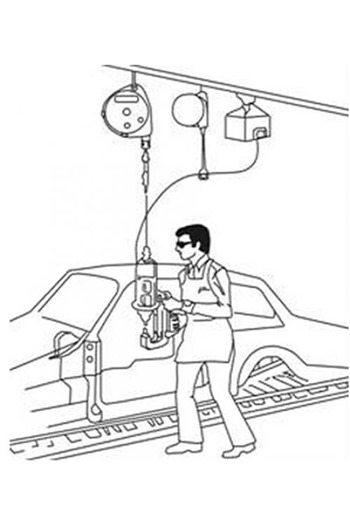

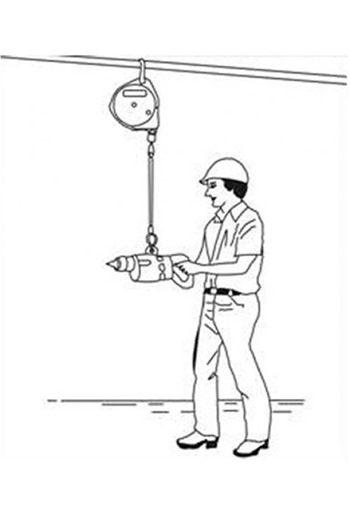

  Possible applications include:-

  • Resistance spot welding machines
  • Measuring machines
  • Compressed air equipment
  • X-ray apparatus
  • Power tools (electric driven)
  • Welding machines
  • Welding templates
  • Paint spraying appartus
  • Cages
• Specifications

• Additional Information

  Operating Instructions Product information
• Price Breaks
• Yale 15-22kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 10.00kg):

  Quantity:

  1+

  (£1,046.50 inc VAT)
  Yale 22-30kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 11.00kg):

  Quantity:

  1+

  (£1,067.50 inc VAT)
  Yale 30-40kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 14.50kg):

  Quantity:

  1+

  (£1,357.93 inc VAT)
  Yale 40-50kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 15.00kg):

  Quantity:

  1+

  (£1,453.97 inc VAT)
  Yale 50-60kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 16.00kg):

  Quantity:

  1+

  (£1,569.80 inc VAT)
  Yale 9-15kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 10.00kg):

  Quantity:

  1+

  (£1,024.61 inc VAT)
  Yale 60-70kg Spring Balancer 2.3mtr Lift (Net Weight Per Item: 16.50kg):

  Quantity:

  1+

  (£1,598.22 inc VAT)
