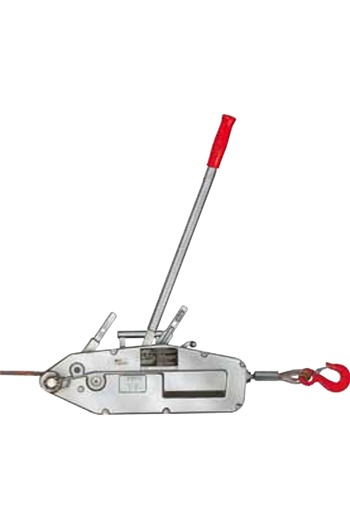

Yale Y32 Yaletrac Aluminium 3200kg Wire Rope Cable Puller c/w 20mtr Rope

More From This Brand

Add to New List

• Product Info

• Yale Y32 Yaletrac Aluminium 3200kg Wire Rope Cable Puller c/w 20mtr Rope

  The Yaletrac range of portable cable pullers provide a versatile tool for pulling, lifting, lowering, tensioning, and securing loads over long distances.  They are easy and safe to use and are almost service free

  They are light weight, compact, high strength aluminium alloy housing with a large flat bottom surface for increased stability in horizontal as well as vertical working positions

  Specifically designed for applications within industry, building construction, civil engineering, ship building, power line construction, and oil refineries etc..

  Supplied with 20mtr Rope

  Features and benefits include:-

  • Forward and reversing levers, operating in tandem provide slim design and assure power transfer along the centre line
  • A lever disengages the rope clamp system allowing easy and smooth installation/removal of the wire rope
  • Overload protection is provided by a shear pin in the forward operating lever.  Spare shear pins are conveniently located in the carrying handle or operating lever
  • Large opening in the top of the units allow easy cleaning: simply flush the unit with a bucket of water, apply motor oil for lubrication and the Yaletrac is ready for use again
  • The Yaletrac cable pullers use a special flexible wire rope.  It has six strands with a steel core.  The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end

  Model: Y32

  Capacity: 3200kg

  Rope advance per double stroke: 40mm

  Lever pull at WLL: 50daN

  Weight without rope: 21kg

  Rope weight: 20kg

• Specifications

• Additional Information

  Data Sheet Dimensions Instruction Manual Parts Breakdown
• Price Breaks
• Yale Y32 Yaletrac Aluminium 3200kg Wire Rope Cable Puller c/w 20mtr Rope (Net Weight Per Item: 41.00kg):

  Quantity:

  1+

  (£1,168.64 inc VAT)
