YALE UNOplus 750kg Leverhoist 1.5mtr to 6mtr

More From This Brand

Add to New List

• Product Info

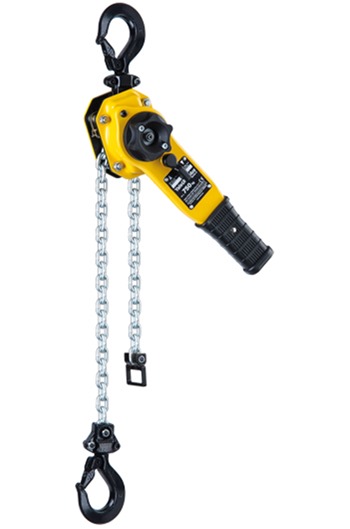

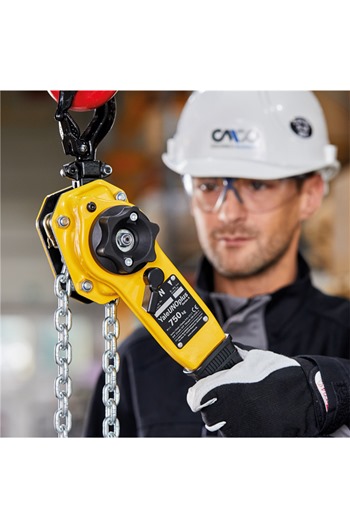

• YALE UNOplus 750kg Leverhoist

  The UNOplus-Series A ratchet Leverhoist is the result of further technical development of the UNOplus, which has proven itself over many years

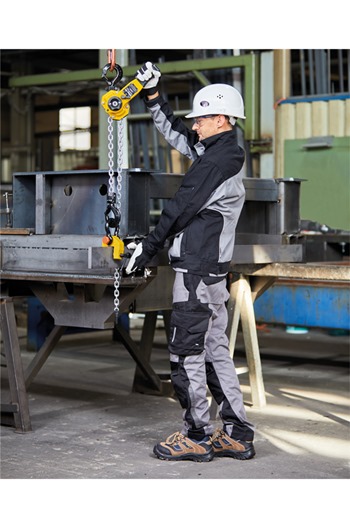

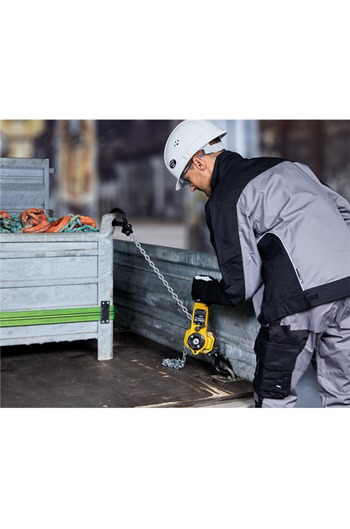

  The versatile  tool for lifting, pulling and securing of loads is characterised by it's compact design, robust stamped steel construction and the smoothly running free chaining device.  The further weight optimizes operation, makes the application even more comfortable and the UNOplus-Series A to a convenient, versatile device

  What are the main differences between the UNOplus and the UNOplus Series A?

  • 25% lighter in weight.  The 1500kg is now 9.2kg compared to the 12.5kg on the old unit
  • New and improved, enclosed pressed steel chain guide
  • Vastly improved design of handwheel using durable composite material
  • Utilises the same chain as the Yale ERGO360
  • Bottom hook is now bolted as opposed to riveted to allow easier inspection of the hook
  • New non-slip rubber handle grip
  • Extremely smooth and easier to use free chaining

  750kg SWL

  Lifting Heights available: 1.5mtr, 3mtr, 4mtr & 6mtr

  Falls of loadchain: 1

  Chain diameter: 5.6x17.1mm

  Closed height: 312mm

  Lift with one full lever turn: 27mm

  Fully tested and certified

• Specifications

• Additional Information

  Data Sheet Parts Breakdown Instruction Manual
• Price Breaks
• YALE UNOplus 750kg Leverhoist HOL:1.5mtr (Net Weight Per Item: 7.20kg):

  Quantity:

  1+

  (£214.14 inc VAT)
  YALE UNOplus 750kg Leverhoist HOL:3mtr (Net Weight Per Item: 8.60kg):

  Quantity:

  1+

  (£242.24 inc VAT)
  YALE UNOplus 750kg Leverhoist HOL:4mtr (Net Weight Per Item: 9.40kg):

  Quantity:

  1+

  (£258.02 inc VAT)
  YALE UNOplus 750kg Leverhoist HOL:6mtr (Net Weight Per Item: 11.00kg):

  Quantity:

  1+

  (£292.58 inc VAT)
