Yale TPM0.5 500kg Permanent Lifting Magnet

More From This Brand

Add to New List

• Product Info

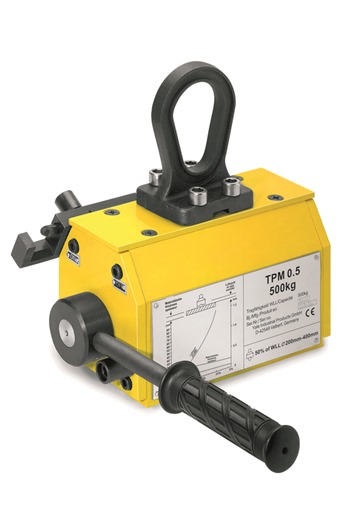

• Yale TPM0.5 500kg Permanent Lifting Magnet

  TPM load lifting magnets are ideal tools for easy, quick and thus economical transport of heavy objects made of ferro-magnetic material. Typical operating areas are workshops and warehouses, loading and unloading of machines as well as construction of jigs and fixtures

  Factors that reduce the magnetic clamping force:-

  Air gap: High magnetic forces created by the TPM allow the magnet to clamp components through the air gap, however, air gaps will reduce the magnetic performance as the provide a barrier between the contact surfaces.  Air gaps occue in a number of different ways such as paint, dust and heavy mill scale.  Poorly machined surfaces also constitute an air gap.  Please down rate the magnet capacity in accordance with the adhesive force/air gap diagram (see attached data sheet)

  Material thickness: If the TPM is used to lift plates thinner than the recommended minimum thickness, the clamping forces will be significantly reduced.  Performance curves can be identified in conjunction with the adhesive force/flat thickness diagram (see attached data sheet)

  Contact area: Full lifting capacity can only be achieved when the magnet has full contact area with the component being lifted.  If the contact surface has holes in or is uneven then the performance will be affected accordingly.  Always carry out a trial lift in these circumstances to establish correct lifting before transporting the load

  Material type: Certain materials have different abilities to carry magnetism.  For materials other than mild steel a reduction factor must be applied in order to calculate the effective clamping force

  Typical values:
  Ferrous alloy steels 0.8
  High carbon steels 0.7
  Cast iron 0.55

  Examples of reduced WLL:
  Mild steel 500g
  Cast iron 500kg x 0.55 = 275kg

  Model: TPM0.5

  Capacity: 500kg (flat material) 250kg (round material)

  Minimum thickness to obtain material: 24mm

  Weight: 27.5kg



• Specifications

• Additional Information

  Data Sheet Operating Instructions Spare Parts Manual HSE Guidance Load Chart Safe use of TPM Magnets
• Price Breaks
• Yale TPM0.5 500kg Permanent Lifting Magnet (Net Weight Per Item: 27.50kg):

  Quantity:

  1+

  (£805.72 inc VAT)
