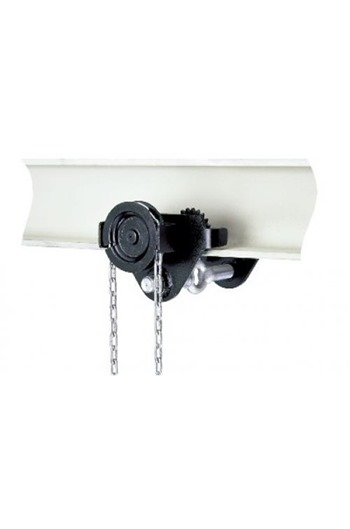

YALE HTG 500kg Geared Travel Beam Trolley 50-220mm

More From This Brand

Add to New List

• Product Info

• YALE HTG 500kg Geared Travel Beam Trolley 50-220mm

  The Yale HTP Trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment

  It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings

  Adjustable to fit a wide range of beam widths and profiles (e.g INP, IPE and IPB)

  Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis - no creeping to the left or the right

  The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1)

  2.5mtr hand chain drop is fitted as standard - longer lengths available (please contact us for details)

  Model: HTG500

  Capacity: 500kg

  Beam width: 50-220mm

  Weight: 9.7kg

• Specifications

• Additional Information

  Data Sheet Dimensions Instruction Manual
• Price Breaks
• YALE HTG 500kg Geared Travel Beam Trolley 50-220mm (Net Weight Per Item: 9.70kg):

  Quantity:

  1+

  (£209.27 inc VAT)
