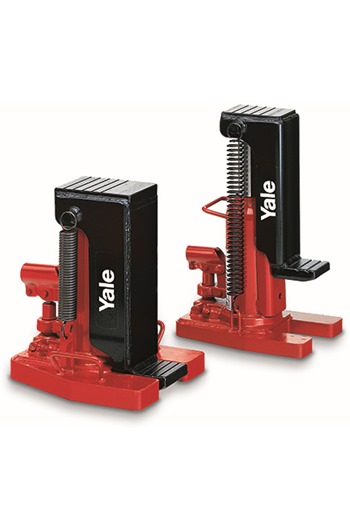

Yale 5tonne YAM Hydraulic Toe Jack

More From This Brand

Add to New List

• Product Info

• Machine jacks with lifting claw are used in applications where space below the load is restricted, thus preventing the use of traditional lifting equipment

  Typical applications for Machine Jacks are lifting, positioning and transportation of machines, heavy steel constructions or similar loads, as well as general repair and assembly application

  These Jacks are also useful for applications like leveling of high-rise warehouses, heavy-duty scaffolds, large frameworks etc

  Key Features

  ---

  • Offers safe lifting of machines with an extremely low clearance
  • Incl. safety pressure valve to prevent overload
  • Large base offers increased stability under load
  • Pump lever can rotate through 270°
  • Same load can be lifted on either the head or the claw of Jack
  • Spring return of the lifting claw
  • Precision-adjustable lowering valve
  • Jacks are supplied ready to use incl. pump lever, and are filled with oil

  Specifications

  ---

  • Model: YAM-5
  • Capacity on the claw: 5tonne
  • Closed height: 290mm
  • Stroke: 120mm
  • Weight: 19kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Yale 5tonne YAM Hydraulic Toe Jack (Net Weight Per Item: 19.00kg):

  Quantity:

  1 - 1

  (£709.46 inc VAT)

  Quantity:

  2 - 3

  (£698.82 inc VAT)

  Quantity:

  4+

  (£691.02 inc VAT)
