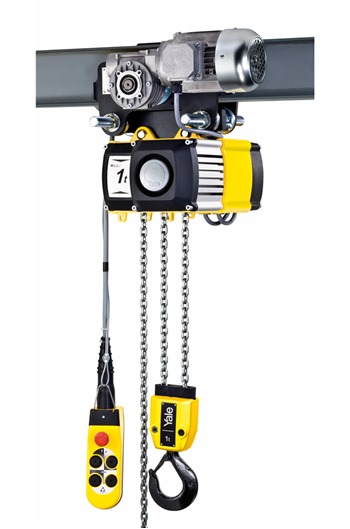

YALE 250kg 3phase Electric Hoist with Powered Trolley

More From This Brand

Add to New List

• Product Info

• YALE CPV2-8 250kg 3phase Electric Chain Hoist c/w Powered Trolley

  SWL: 250kg

  Falls of chain: 1

  Hoist speed: 8mtrs/min

  Avaible from 3mtr HOL to 15mtr HOL

  Single speed Powered Trolley (18mtrs/min)

  The new YALE CPV Electric Chain Hoist combines modern design and technical innovation.  This 250kg hoist has a robust construction that makes it a versatile tool for industrial applications.  Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox

  Features include:-

  • Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
  • Designed to FEM 1am. H3 (HMI)
  • Main line contactor for increased safety
  • Duty cycle 50% ED for single speed
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure
  • The externally adjustable slip clutch is designed to guarantee a permanent connection betweem the load and the brake
  • Motor classification H3 and protected to IP 55 against ingress of dust and water jets
  • Standard operating voltage: 400V, 3Ph, 50hz
  • Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
  • Price includes Chainbag
  • Fully tested and certified
• Specifications
• Brand CMCO

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Specifications
• Price Breaks
• YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:03mtr (Net Weight Per Item: 33.00kg):

  Quantity:

  1+

  (£2,654.72 inc VAT)
  YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:04mtr (Net Weight Per Item: 34.00kg):

  Quantity:

  1+

  (£2,685.26 inc VAT)
  YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:06mtr (Net Weight Per Item: 36.00kg):

  Quantity:

  1+

  (£2,782.04 inc VAT)
  YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:10mtrs (Net Weight Per Item: 38.00kg):

  Quantity:

  1+

  (£2,868.48 inc VAT)
  YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:12mtrs (Net Weight Per Item: 40.00kg):

  Quantity:

  1+

  (£2,929.56 inc VAT)
  YALE 250kg 3phase Electric Hoist with Powered Trolley HOL:15mtrs (Net Weight Per Item: 42.00kg):

  Quantity:

  1+

  (£2,978.99 inc VAT)
