YALE 1000kg 3phase Electric Hoist c/w Powered Trolley

More From This Brand

Add to New List

• Product Info

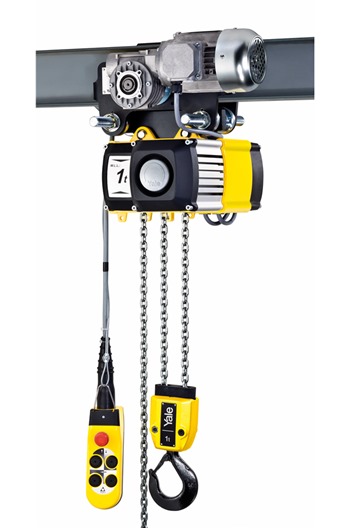

• YALE CPV10-4 1000kg 3phase Electric Chain Hoist c/w Powered Trolley

  SWL: 1000kg

  Falls of chain: 2

  Hoist speed: 4mtrs/min

  Avaible from 3mtr HOL to 15mtr HOL

  Single speed Powered Trolley (18mtrs/min)

  The new YALE CPV Electric Chain Hoist combines modern design and technical innovation.  A robust construction makes the series a versatile tool for industrial applications.  Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox

  Yale Hoist Features include:-

  • Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
  • Designed to FEM 1am. H3 (HMI)
  • Main line contactor for increased safety
  • Duty cycle 50% ED for single speed
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure
  • The externally adjustable slip clutch is designed to guarantee a permanent connection betweem the load and the brake
  • Motor classification H3 and protected to IP 55 against ingress of dust and water jets
  • Standard operating voltage: 400V, 3Ph, 50hz
  • Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
  • Price includes Chainbag
  • Fully tested and certified


  For more information on this Yale hoist or any other Yale hoisting products, be sure to contact a member of the Safety Liftin Gear team today.

• Specifications
• Brand CMCO

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Specifications
• Price Breaks
• YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:03mtr (Net Weight Per Item: 51.00kg):

  Quantity:

  1+

  (£2,958.62 inc VAT)
  YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:04mtr (Net Weight Per Item: 52.00kg):

  Quantity:

  1+

  (£3,024.67 inc VAT)
  YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:06mtr (Net Weight Per Item: 54.00kg):

  Quantity:

  1+

  (£3,154.87 inc VAT)
  YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:10mtrs (Net Weight Per Item: 56.00kg):

  Quantity:

  1+

  (£3,448.74 inc VAT)
  YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:12mtrs (Net Weight Per Item: 58.00kg):

  Quantity:

  1+

  (£3,575.23 inc VAT)
  YALE 1000kg 3phase Electric Hoist with Powered Trolley HOL:15mtrs (Net Weight Per Item: 60.00kg):

  Quantity:

  1+

  (£3,726.17 inc VAT)
