Wire Rope Hoist, WLL 230kg, 110volt, 20mtr Lifting Height

More From This Brand

Add to New List

• Product Info

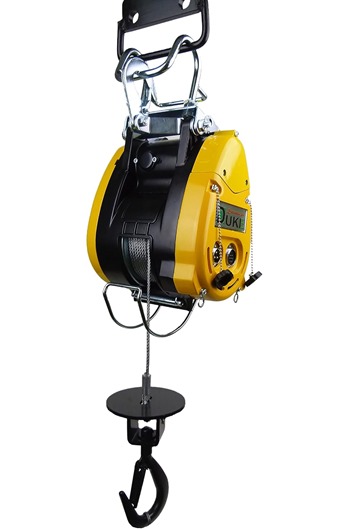

• DUKE DU230a 110volt Electric Wire Rope Hoist 20mtr Lifting Height

  Suitable for Light Industrial Use

  This hoist is light and compact making this an easy hoist to transport and install. The upper attachment is ideal for fitting direct to a scaffold pole or any other suitable rated anchor point

  Lower swivel hook has a large opening to accommodate slings etc and is fitted with a safety catch

  Ideal for construction applications such as scaffolding and general engineering applications

  Upper limit arm protects the hoist from damage

  Specifications:-

  • Capacity: 230kg
  • 110 Volt Single Phase
  • Height of lift: 20mtr
  • Speed: 19 metres per minute
  • Current at rated load (amp): 10
  • Pendant Length: 5mtr
  • Pendant control with emergency stop
  • Rope diameter: 5mm
  • Closed headroom: 600mm (when the hook is fully up)
  • Jacket available for outside use
  • Supplied with power lead and plug
  • Manufacturer: Duke Hoist and Winch

  IP54 Rated for protection from water and dust ingress

  Supplied fully tested and certified

  When powering from a generator you will need a 5.4kw Genset

  12 months warranty

• Specifications

• Additional Information

  Operation Manual
• Price Breaks
• DU230a Wire Rope Hoist, WLL 230kg, 110volt, 20mtr Lifting Height (Net Weight Per Item: 16.00kg):

  Quantity:

  1 - 1

  (£472.07 inc VAT)

  Quantity:

  2 - 3

  (£463.81 inc VAT)

  Quantity:

  4+

  (£460.27 inc VAT)
