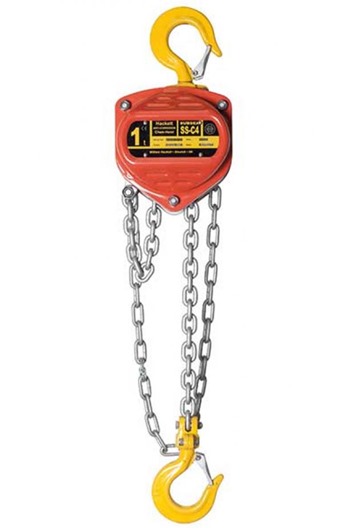

• William Hackett SS-C4 500kg Off-shore Chainblock

  The William Hackett SS-C4 Offshore Chain Hoist meets and exceeds the requirements of the following  international standards:-

  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2012
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017

  William Hackett has taken its extensive knowledge acquired in the supply of a specialist topside and subsea hoisting range to the offshore sector and translated this technology to a second generation range of William Hackett SS-C4 offshore chain hoists

  SS-C4 design and specification features:-

  • LIGHT LOAD CAPABILITY: The SS-C4 is tested and certified at 2% of the chain hoist rated capacity
  • SAFETY LATCHES: The SS-C4 chain hoist top and bottom hooks are fitted with heavy duty cast steel latches.  The latch and hook tips are integrated creating a strong and robust hook closure
  • OVERLOAD INDICATOR MARKS: SS-C4 chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat
  • HOOK HOUSING: The SS-C4 chain hoist top and bottom hook housings are secured with socket head cap screws/hex head bolts and nyloc insert locking nuts
  • FLEETING/CROSS HAULING: The SS-C4 chain hoist has been independently tested and vertified (Test Report 2550-7615) for fleeting or cross hauling applications at angles up to 45° from the vertical without deration
  • LOAD CHAIN: These chain blocks are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8)
  • TEMPERATURE RANGE: -20°C to + 120°C
  • PROOF TESTED: Every hoist is proof tested to 1.5 times the Working Load Limit
  • CORROSION PROTECTION: All internal brake components and latch kits are corrosion protected and tested to 500hrs and salt spray testing according to ASTM B117 and ISO9227
  • OPTIONAL EXTRA: The SS-C4 chain block can be fitted with an overload limiter and also hook adaptors to allow any Gr8 fixing to be fitted to the SS-C4 to suit varying applications

  Capacity: 500kg

  Number of falls: 1

  Lifting heights available from 3mtr to 20mtr

  Weight based on 3mtr HOL: 7.8kg



• Specifications
• Brand William Hackett

  Custom Made Product Yes

  Included in Return Policy No

  Additional Information

  Data Sheet
• Price Breaks
• William Hackett SS-C4 500kg Off-shore Chainblock HOL:3mtr (Net Weight Per Item: 7.80kg):

  Quantity:

  1+

  (£262.02 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:4mtr (Net Weight Per Item: 8.80kg):

  Quantity:

  1+

  (£291.13 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:6mtr (Net Weight Per Item: 10.80kg):

  Quantity:

  1+

  (£366.83 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:9mtr (Net Weight Per Item: 13.80kg):

  Quantity:

  1+

  (£422.15 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:10mtr (Net Weight Per Item: 14.80kg):

  Quantity:

  1+

  (£451.27 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:12mtr (Net Weight Per Item: 16.80kg):

  Quantity:

  1+

  (£494.95 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:15mtr (Net Weight Per Item: 19.80kg):

  Quantity:

  1+

  (£552.70 inc VAT)
  William Hackett SS-C4 500kg Off-shore Chainblock HOL:20mtr (Net Weight Per Item: 24.80kg):

  Quantity:

  1+

  (£674.99 inc VAT)
