Tractel Tracrod Mobile Anchor System for Confined Spaces

More From This Brand

Add to New List

• Product Info

• Tractel Tracrod Mobile Anchor System for Confined Spaces

  The Tracrod is a compact, lightweight and movable anchor point for two users of 150kg each, with a working height of 1.5mtr, designed to enable access via manholes

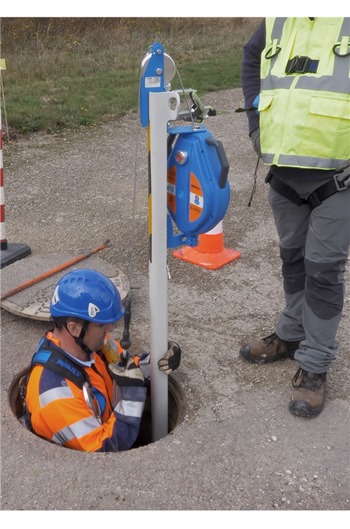

  Ideal for applications where there is need for regular vertical access, such as confined spaces, pipes and sewer access.  This is an ideal solution where there is a need to access several identical areas.  The stainless steel bases are installed permanently at each site and the lightweight aluminium rod is then easily transported between sites

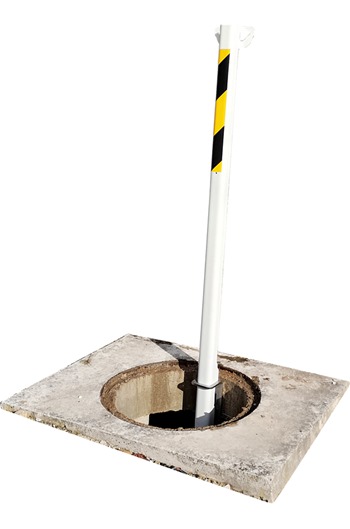

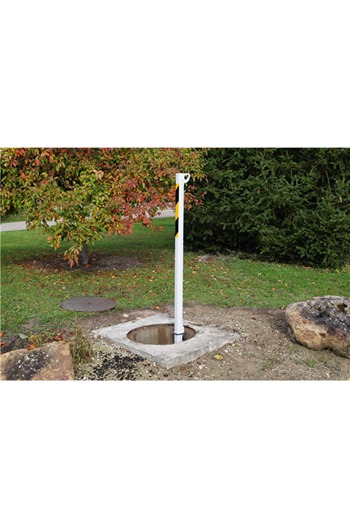

  To install it ready for use, the Tracrod is inserted into the stainless steel base which is secured in place permenantly in a manhole.  It can be set up and removed within seconds

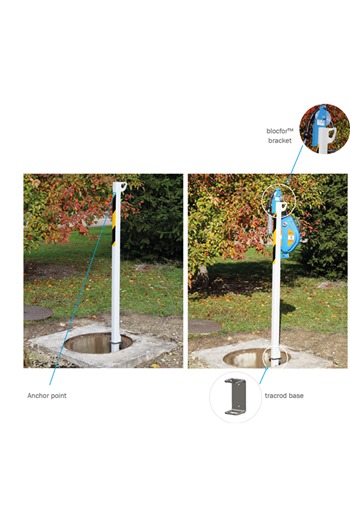

  The head of the Tracrod is equipped with two anchor points

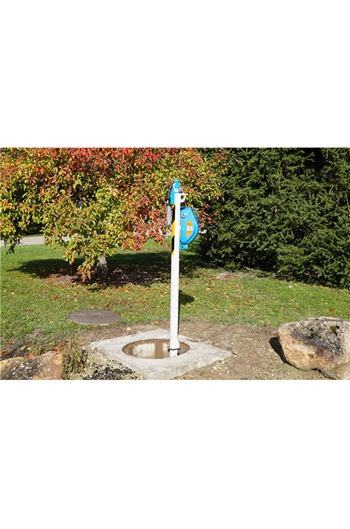

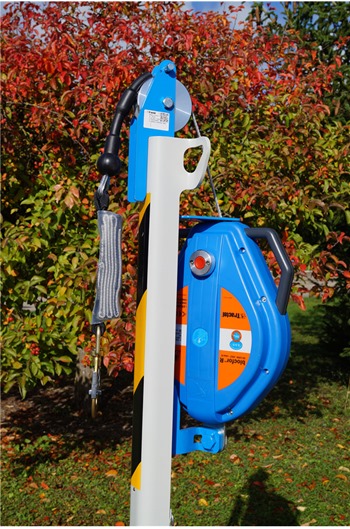

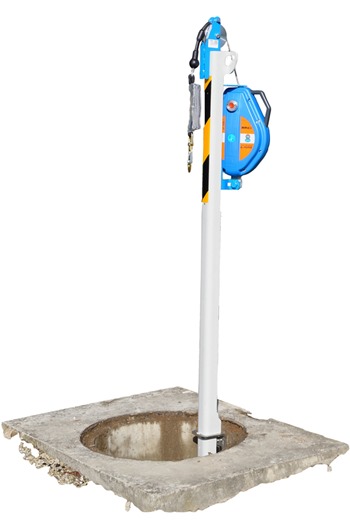

  As an option, it can be fitted with a bracket and Blocfor Fall Arrest Block with Recovery Winch

  Available in the following options:-

  • Tracrod with base mount only
  • Tracrod with base mount, Blocfor 20R 20mtr Fall Arrest Block and bracket
  • Tracrod with base mount, Blocfor 30R 30mtr Fall Arrest Block and bracket

  Features:-

  • Enables two operators, each weighing up to 150 kg (operator + harness +tools), to work in safety
  • Conforms to standard EN 795A and TS16415 (multiple 150-kg users).
  • The tubular design ensures that the system offers high levels of stiffness and strength.
  • Can be fitted with a bracket to support a blocfor™ 20/30R fall-arresting device.
  • Bracket for the Blocfor can be fitted and removed within seconds.
  • Certified for use as an anchor point for fall arrest and rescue systems
  • Small size (1.76mtr) and low weight (5.5kg) makes it easy to transport and quick to set up
  • All components of the tracold anchor point are made of non-corrosive materials to provide optimal resistance in a humid environment

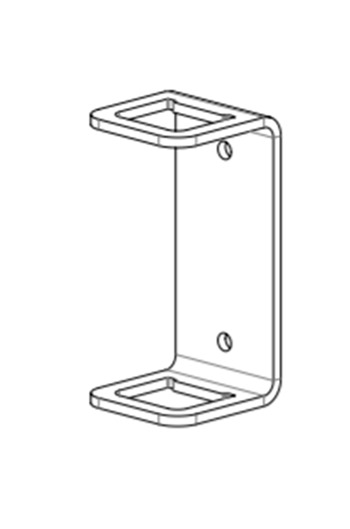

  • The support mount is fastened using 12 mm chemical anchor fasteners and does not require any special tools

  Available extras (please contact us for pricing):-

  • Securing plate (207368) – can be used if you need to put more fixings in and to spread the distance between the fixings (e.g if you are fixing into brick instead of solid concrete)
  • 5cm thick Spacer block (207358) – If you want to mount the support so that it sites away from the wall slightly.  This might be to stop the Tracrod clashing with a lip at the top of a manhole for example



• Specifications
• Brand Tractel

  CE / UKCA Marked Yes

  Certification Supplied Declaration of Conformity

  Conforms to EN Standard EN 795A TS16415

  Country of Origin Luxembourg

  Product Material Tubular Aluminium

  Maximum User Weight 150kg

  Product Colour Metallic Silver & Blue

  Product Weight 5.5kg

  Product Length 1.76mtrs

  W.L.L. 300kg

  Additional Information

  Data Sheet Tracrod Instruction Manual Blocfor Instruction Manual Base Mount Instruction Manual
• Price Breaks
• Tractel Tracrod Mobile Anchor System c/w base mount ONLY (Net Weight Per Item: 6.00kg):

  Quantity:

  1+

  (£782.82 inc VAT)
  Tractel Tracrod Mobile Anchor System c/w base mount & 20R Blocfor (Net Weight Per Item: 18.00kg):

  Quantity:

  1+

  (£2,051.70 inc VAT)
  Tractel Tracrod Mobile Anchor System c/w base mount & 30R Blocfor (Net Weight Per Item: 21.00kg):

  Quantity:

  1+

  (£2,965.74 inc VAT)
