• Tractel Tracpode CSK2 20mtr Confined Space Tripod Kit

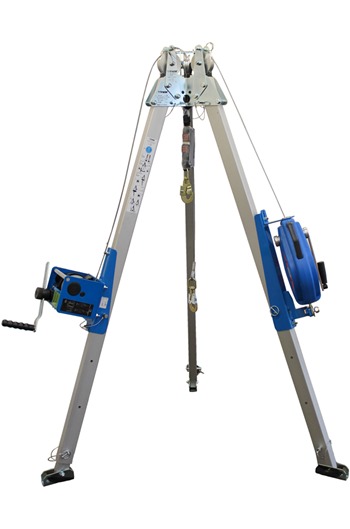

  The Tracpode is a temporary anchor point tested to stop the fall of two operators weighing 150kg each, including their equipment and tools. It can also be used as an anchor point for lifting, with the capability to raise a maximum load of 500kg, provided the strap is fitted to the feet

  Due to its size, the Tracpode is extremely suitable as a mobile anchor point for working in confined spaces, handling loads and performing rescue operations.  Made from lightweight aluminium, the Tracpode can be folded up small enough to be transported easily in most vehicles

  The head of the Tracpode is equipped with 3 anchor points:-

  • 2x anchor points to support all types of fall arrest or evacuation systems of up to 150kg user weight
  • 1x anchor point to support a Chainblock or Electric Hoist up to 250kg (can be increased to 500kg providing the strap is fitted to the feet)

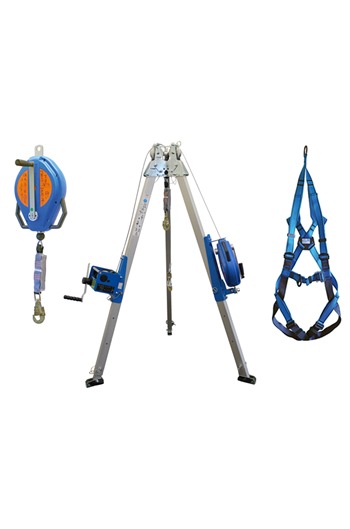

  Kit comprises of:-

  • Tracpode Tripod

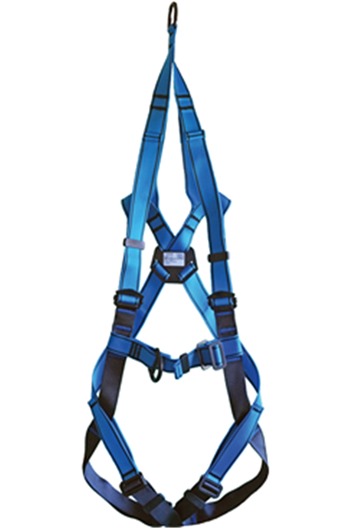

  • HT22R Rescue Harness

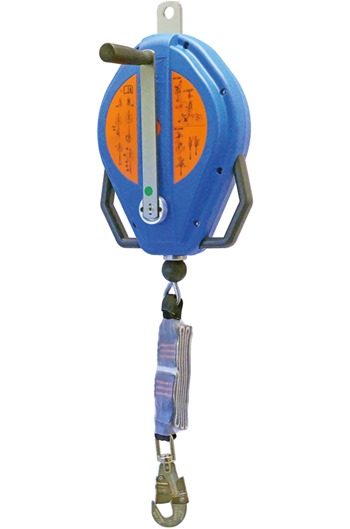

  • Blockfor 20mtr Retrieval Block
  • Bracket for Blocfor

  *** CAROL HAND WINCH SHOWN IN MAIN PICTURE IS NOT INCLUDED AND SOLD SEPARATELY ***

  Features:-

  • Meets the requirements of the EN 795B standard and the TS16415 (multi-use 150kg)
  • Compliant with the Machinery Directive 2006/42 / CEE
  • Made of aluminum
  • Tracpode weighs only 23kg without accessories
  • Maximum height below head is adjustable from 1.78mtr to 2.73mtr
  • Dependant on height, distance between feet varies from 1.03mtr to 1.58mtr
  • The length of the legs can be extended in increments of 20cm
  • Tubular legs ensure that the system is strong and rigid
  • The locking pin and spring loaded clips are attached permanently to the tubular leg sections by small cables to keep all the components of the assembly together
  • Foldable system for easy transport
  • Easy to install



• Specifications
• Brand Tractel

  CE / UKCA Marked Yes

  Conforms to EN Standard EN 795 Type B

  Country of Origin Luxembourg

  Product Material Rubber, Tubular Aluminium

  Inspection Period (From date of first use) 12 Months

  Maximum User Weight 150kg

  Product Colour Blue & Silver

  Height 2.73mtrs

  Product Weight 23kg

  W.L.L. 500kg

  Effective Working Length (EWL) 20mtr

  Additional Information

  Tracpode Data Sheet Tracpode Instruction Manual Blocfor Instruction Manual
