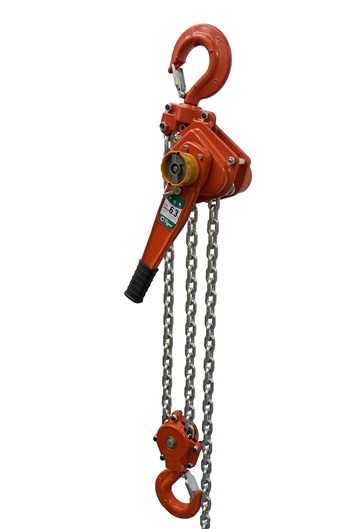

Tiger PROLH 10tonne Professional Leverhoist

More From This Brand

Add to New List

• Product Info

• Tiger PROLH 10tonne Professional Leverhoist

  Tiger PROLH lever hoists incorporate many of the advanced safety features that Tiger has developed including one-piece construction pinion gears, our unique intelligent dual brake system and our patented Quad Cam Pawl System. These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.21, AS1418.2 and SANS 1636

  The PROLH is ideally suited for applications in the overhead transmission industry, shipyards and offshore platforms and is also suitable for underground mining use

  Capacity: 10tonne

  Number of falls of loadchain: 3

  Weight: 46kg (based on 1.5mtr lifting height)

  Main features:-

  • Thousands of hours of empirical evidence as proof of design
  • One-piece construction pinion gear
  • Light load tested and certified at 2% of the rated capacity
  • No requirement for preload tension to activate the ratchet mechanism
  • Adaptable to use both inverted and horizontally
  • Each hoist is individually proof tested at 1.5 times the rated capacity
  • Using only the highest quality alloy calibrated load chains according to EN 818-7 and ISO 16872
  • Individual spares readily available
  • All major parts are heat treated and precisely machined
  • Can be chained up to meet your exact requirements
  • Finished in high quality powder coat paint offering excellent corrosion protection
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Also available with stainless steel load chain or spark resistant hooks
  • Available with load bearing swivel hooks to meet relevant standards i.e. AS 1418.2
  • All Tiger lever hoist handles contain rubber which is free from phthalates
  • Fleeting angles up to 60° from the vertical without deration
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Tiger PROLH 10tonne Professional Leverhoist x 1.5mtr lifting height (Net Weight Per Item: 46.00kg):

  Quantity:

  1 - 1

  (£990.18 inc VAT)

  Quantity:

  2 - 3

  (£978.30 inc VAT)

  Quantity:

  4+

  (£965.43 inc VAT)
  Tiger PROLH 10tonne Professional Leverhoist x 3mtr lifting height (Net Weight Per Item: 54.80kg):

  Quantity:

  1 - 1

  (£1,088.68 inc VAT)

  Quantity:

  2 - 3

  (£1,073.43 inc VAT)

  Quantity:

  4+

  (£1,061.46 inc VAT)
  Tiger PROLH 10tonne Professional Leverhoist x 4mtr lifting height (Net Weight Per Item: 61.75kg):

  Quantity:

  1 - 1

  (£1,154.62 inc VAT)

  Quantity:

  2 - 3

  (£1,138.45 inc VAT)

  Quantity:

  4+

  (£1,123.44 inc VAT)
  Tiger PROLH 10tonne Professional Leverhoist x 6mtr lifting height (Net Weight Per Item: 74.75kg):

  Quantity:

  1 - 1

  (£1,284.70 inc VAT)

  Quantity:

  2 - 3

  (£1,269.28 inc VAT)

  Quantity:

  4+

  (£1,252.58 inc VAT)
