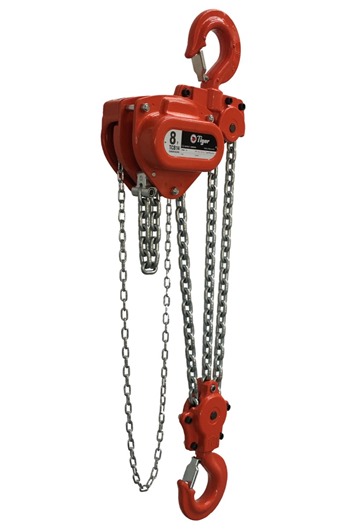

Tiger PROCB14 8tonne Professional Chain Block

More From This Brand

Add to New List

• Product Info

• Tiger PROCB14 8tonne Professional Chain Block

  The PROCB is manufactured from the highest quality steel materials precisely machined in our own factory, offering a lightweight, compact and rugged construction, producing an exceptionally strong product resistant to impact damage.  The especially low headroom allows for easy installation in the most restricted environments. The unique design features – including our patented Quad Cam Pawl System – give it significant safety advantages over standard chain blocks and make the PROCB chain block the ideal tool for long term use with low maintenance and servicing costs

  These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009, ANSI/ASME B30.16, AS 1418.2 and SANS 1594

  Key design features such as our patented brake pawls and deep pocket design hand wheel along with the full and comprehensive testing regime we have submitted our PROCB hoist to provide the evidence that allows us to state that these units can be safely used for “fleeting”, “drifting” and “cross-hauling” applications up to 45° from the vertical without deration

  Capacity: 8tonne

  Number of falls of Loadchain: 3

  Weight: 61kg (based on 3mtr lifting height)

  Main features:-

  • DNV GL Verification tested according to NORSOK R-002
  • Available with slipping clutch overload protection (please contact us for details)
  • Tested and certified for “fleeting”, “drifting” and “cross-hauling” applications up to 45° from the vertical without deration
  • Patented Quad Cam Pawl System
  • Certified 2% light load protection
  • Rugged steel body construction yet lightweight and portable
  • Double cover protection for brake chamber
  • Drop forged & heat-treated alloy hooks
  • High quality alloy calibrated load chain
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Operating temperature of -40°C to +80°C
  • Proof tested to 1.5 times rated capacity
  • Can be chained to any height of lift to meet your exact requirements (please contact us for custom lengths)
  • Individual spares readily available
  • Suitable for underground mining use
  • Also available with stainless steel load chain
  • Available with load bearing swivel hooks to meet relevant standards e.g. AS 1418.2
  • Meets or exceeds all international standards
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Tiger PROCB14 8tonne Professional Chain Block HOL: 10mtr (Net Weight Per Item: 113.50kg):

  Quantity:

  1 - 1

  (£1,354.96 inc VAT)

  Quantity:

  2 - 3

  (£1,338.70 inc VAT)

  Quantity:

  4+

  (£1,330.57 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 12mtr (Net Weight Per Item: 128.50kg):

  Quantity:

  1 - 1

  (£1,490.58 inc VAT)

  Quantity:

  2 - 3

  (£1,472.69 inc VAT)

  Quantity:

  4+

  (£1,463.75 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 15mtr (Net Weight Per Item: 151.00kg):

  Quantity:

  1 - 1

  (£1,702.80 inc VAT)

  Quantity:

  2 - 3

  (£1,682.37 inc VAT)

  Quantity:

  4+

  (£1,672.15 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 20mtr (Net Weight Per Item: 188.50kg):

  Quantity:

  1 - 1

  (£2,048.26 inc VAT)

  Quantity:

  2 - 3

  (£2,023.68 inc VAT)

  Quantity:

  4+

  (£2,011.39 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 3mtr (Net Weight Per Item: 61.00kg):

  Quantity:

  1 - 1

  (£870.19 inc VAT)

  Quantity:

  2 - 3

  (£859.75 inc VAT)

  Quantity:

  4+

  (£854.53 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 4mtr (Net Weight Per Item: 68.50kg):

  Quantity:

  1 - 1

  (£939.00 inc VAT)

  Quantity:

  2 - 3

  (£927.73 inc VAT)

  Quantity:

  4+

  (£922.10 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 6mtr (Net Weight Per Item: 83.50kg):

  Quantity:

  1 - 1

  (£1,077.44 inc VAT)

  Quantity:

  2 - 3

  (£1,064.51 inc VAT)

  Quantity:

  4+

  (£1,058.05 inc VAT)
  Tiger PROCB14 8tonne Professional Chain Block HOL: 9mtr (Net Weight Per Item: 106.00kg):

  Quantity:

  1 - 1

  (£1,285.63 inc VAT)

  Quantity:

  2 - 3

  (£1,270.20 inc VAT)

  Quantity:

  4+

  (£1,262.49 inc VAT)
