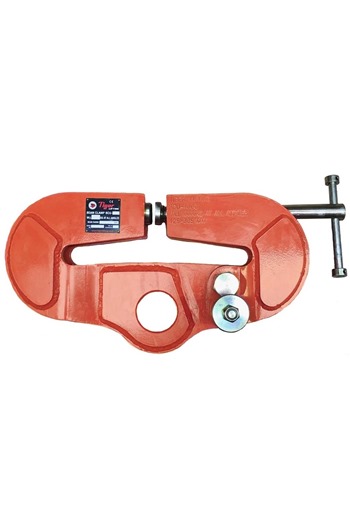

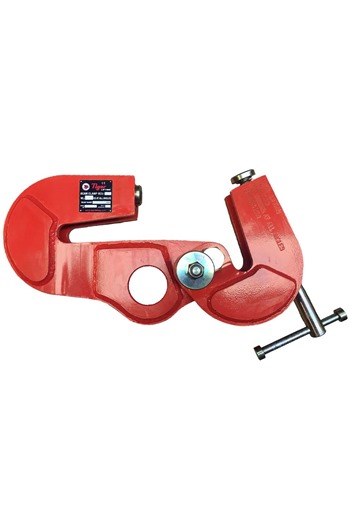

Tiger BCU 10tonne Universal Beam Clamp

More From This Brand

Add to New List

• Product Info

• Tiger BCU 10tonne Universal Beam Clamp

  The Tiger Universal Beam Clamp Model No BCU has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable. This clamp is highly flexible in application and can be used for lifting, pulling or as a semi-permanent anchor point

  It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations

  Features:-

  • 10tonne Capacity
  • Beam width range: 125-305mm
  • Full rated capacity at any lifting angle
  • Quick and versatile rigging point for hoisting equipment
  • Low headroom design
  • Highly flexible – for lifting, pulling or as a semi-permanent anchor point
  • Designed for both vertical and side loading applications – can be loaded at any angle
  • Suitable for pulling and lifting at angles across the beam
  • Designed to accommodate a wide range of beam widths
  • Multidirectional adjusting screw spindle ensures a high clamping force to beam web
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at all other angles
  • Complies with ASME B30.20 and EN13155 :2003+A2 :2009
  • Weight: 31kg
• Specifications

• Additional Information

  Data Sheet
