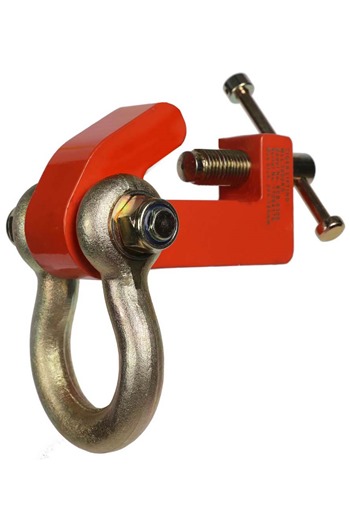

Tiger BCB 1.5tonne Bulb Flat Bar Anchor/Clamp

More From This Brand

Add to New List

• Product Info

• Tiger BCB 1.5tonne Bulb Flat Bar Anchor/Clamp

  The Tiger BCB bulb bar anchor is designed for attaching to bulb profiles of bulb flat bars approved for lifting applications. These are often found in ship compartments, engine rooms and overhead bridge deck structures. The bulb bar anchor provides a semi-permanent lifting point. The large integrated shackle gives easy connection for all different types of lifting machines

  Our BCB bulb flat bar anchor can be side loaded up to 45° and cross loaded up to 15° without derating the unit, whilst still maintaining a 4:1 factor of safety

  ** Please note that this model must NOT be used for lifting beams. It is a suspension point only

  Capacity: 1.5tonne

  Bulb flat width: 160-240mm

  Weight: 3.6kg

  Main features:-

  • Quick and versatile rigging point for hoisting equipment when attached to bulb flat bars approved for lifting applications
  • Shackle suspension point
  • No tools required – integrated adjusting screw spindle
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Up to 45° side loading with no deration
  • 15° cross loading with no deration
  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated above
• Specifications

• Additional Information

  Data Sheet
