Straightpoint Radiolink Plus Wireless Tension Load Cell

More From This Brand

Add to New List

• Product Info

• Straightpoint Radiolink Plus Wireless Tension Load Cell

  The Straightpoint Radiolink Plus is a Wireless Tension Load Cell capable of weighing and dynamic load monitoring in capacities from 1t to 500t, all sizes are DNV-GL approved

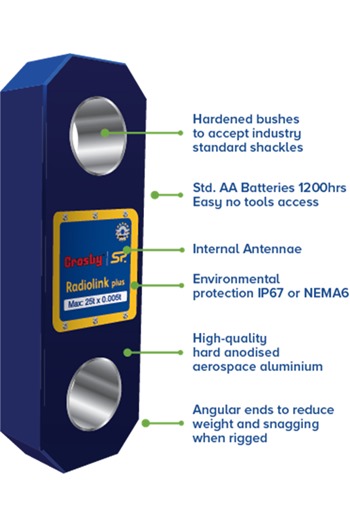

  Constructed from high-quality aerospace grade aluminium, the RLP features an advanced internal design structure. This design provides the product with an unrivalled strength to weight ratio. The use of a separate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features makes it an industry-leading dynamometer, suitable for use in the harshest of environments

  The versatile RLP is able to provide an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz, making it ideal for dynamic force measurement

  Decades of development into this product include many stand out features such as SP's unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. The Radiolink plus tension load cell can also be used in combination with Crosby|Straightpoint ‘INSIGHT’ high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 126 Crosby|Straightpoint wireless load cells

  A full array of wireless accessories are also available including wireless score board, overload alarm and base station with analogue (4-20mA) or 2 relay or RS485 ASCII outputs

  Long range 2.4GHz version providing industry-leading wireless range of 1000m or 3280ft to SP's SW-HHP handheld or software options

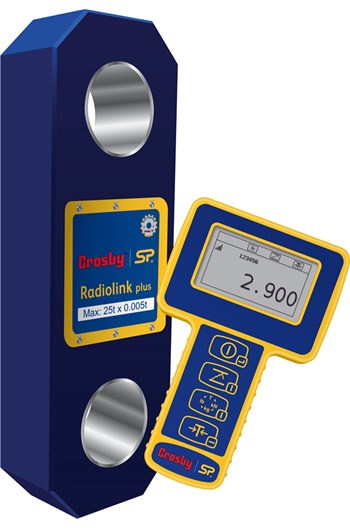

  Supplied with SW-HHP handheld display

  Shackles can be supplied seprately

  Features and benefits:-

  • Proprietary 2.4 GHz Wireless
  • Remote On-Off from handheld display or software
  • ATEX Zones 0, 1 & 2 available
  • Design validated by F.E.A.
  • 2-year warranty
  • DNV-GL Type Approval
  • Complies with ASME B30.26
  • Bluetooth option is available and is supplied with a free HHP App for iOS and Android

  ​*** For sizes 100tonne and above please contact us for delivery times ***

• Specifications

• Additional Information

  Data Sheet Instruction Manual SW-HHP Instruction Manual
• Price Breaks
• Radiolink Plus Wireless Load Cell RLP1T 1tonne (Net Weight Per Item: 1.50kg):

  Quantity:

  1+

  (£3,169.14 inc VAT)
  Radiolink Plus Wireless Load Cell RLP2T5 2.5tonne (Net Weight Per Item: 1.50kg):

  Quantity:

  1+

  (£3,267.54 inc VAT)
  Radiolink Plus Wireless Load Cell RLP6T5 6.5tonne (Net Weight Per Item: 2.40kg):

  Quantity:

  1+

  (£3,278.10 inc VAT)
  Radiolink Plus Wireless Load Cell RLP12T 12tonne (Net Weight Per Item: 3.70kg):

  Quantity:

  1+

  (£3,671.40 inc VAT)
  Radiolink Plus Wireless Load Cell RLP25T 25tonne (Net Weight Per Item: 5.00kg):

  Quantity:

  1+

  (£3,944.34 inc VAT)
  Radiolink Plus Wireless Load Cell RLP35T 35tonne (Net Weight Per Item: 8.60kg):

  Quantity:

  1+

  (£4,143.06 inc VAT)
  Radiolink Plus Wireless Load Cell RLP55T 55tonne (Net Weight Per Item: 13.00kg):

  Quantity:

  1+

  (£4,444.38 inc VAT)
  Radiolink Plus Wireless Load Cell RLP75T 75tonne (Net Weight Per Item: 16.00kg):

  Quantity:

  1+

  (£5,349.30 inc VAT)
  Radiolink Plus Wireless Load Cell RLP100T 100tonne (Net Weight Per Item: 34.00kg):

  Quantity:

  1+

  (£8,752.38 inc VAT)
  Radiolink Plus Wireless Load Cell RLP150T 150tonne (Net Weight Per Item: 46.00kg):

  Quantity:

  1+

  (£11,292.18 inc VAT)
  Radiolink Plus Wireless Load Cell RLP200T 200tonne (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£16,009.62 inc VAT)
  Radiolink Plus Wireless Load Cell RLP250T 250tonne (Net Weight Per Item: 82.00kg):

  Quantity:

  1+

  (£16,624.74 inc VAT)
  Radiolink Plus Wireless Load Cell RLP300T 300tonne (Net Weight Per Item: 118.00kg):

  Quantity:

  1+

  (£22,697.70 inc VAT)
  Radiolink Plus Wireless Load Cell RLP500T 500tonne (Net Weight Per Item: 193.00kg):

  Quantity:

  1+

  (£32,129.34 inc VAT)
