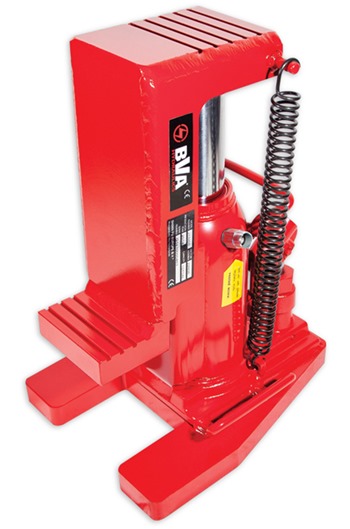

• Steerman BVA-10 10000kg Hydraulic Toe Jack

  Steermand Hydraulic Toe Jacks are ideal when working in very confined spaces

  Typical uses include lifting and positioning of heavy machinery, fabricated steel structures and general engineering applications

  These Jacks are also ideal for user with a set of Steerman Skates

  Features include:-

  • Lifting capacity of 10000kg on the head and toe
  • Extremely low entry height of the toe
  • Operating lever rotates through 220°
  • Carry handle for ease of handling
  • Chrome plated ram and pump piston

  Model: BVA-10

  Capacity: 10000kg head and toe

  Stroke: 130mm

  Closed height: 280mm

  Toe height: 29mm

  Base dimensions: 295mm (L) x 230mm (W)

  Weight: 39.5kg



• Price Breaks
• Steerman BVA-10 10000kg Hydraulic Toe Jack (Net Weight Per Item: 38.20kg):

  Quantity:

  1+

  (£916.02 inc VAT)
