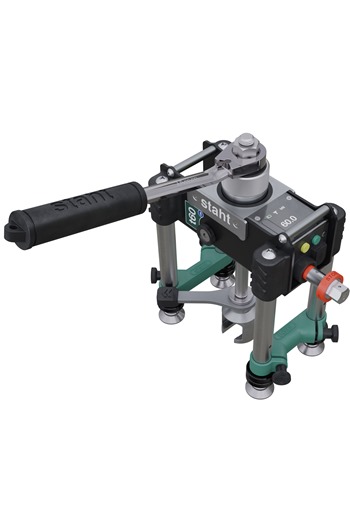

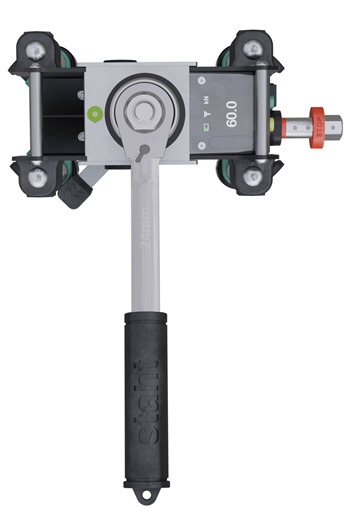

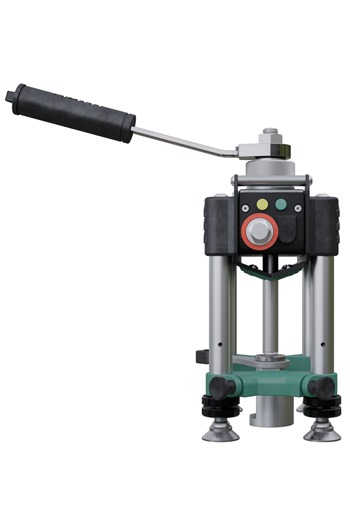

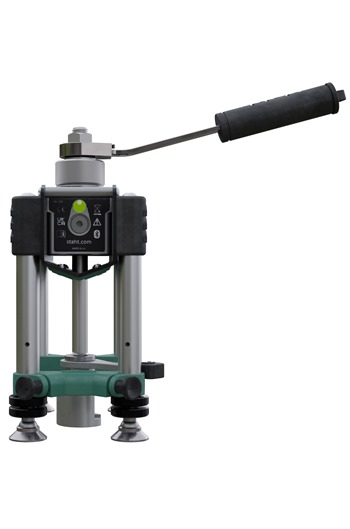

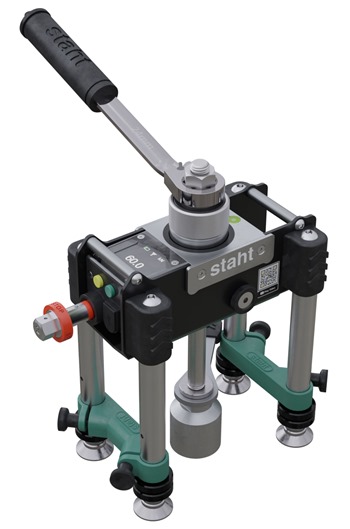

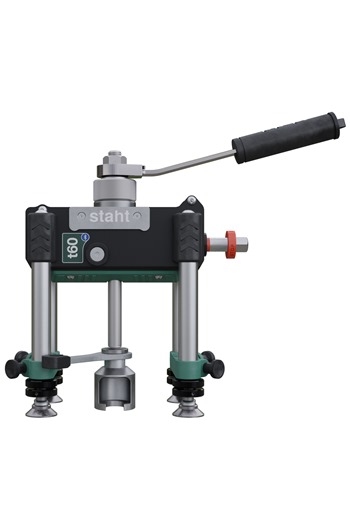

Staht T60 Digital Pull Tester Kit 60kN (supplied with Heavy Duty Case)

More From This Brand

Add to New List

• Product Info

• The Staht T60 Digital Pull Tester is a compact, powerful and innovative machine, enabling the user to reach 60kN with ease. It provides a single solution for all typical on-site proof testing applications. The digital interface and Bluetooth Connectivity provide an excellent user experience and an efficient reporting workflow to improve productivity

  Key Features

  ---

  • Low Torque: 60kN at less than 25Nm of torque
  • Colour Screen: Sunlight ready full colour screen visible in all light conditions
  • Simultaneous Display: Live and Peak Load displayed simultaneously on the test screen
  • Measurement Units: Imperial & Metric recording
  • Rechargeable Battery: USB re-chargeable Li-ion battery
  • Stability: Four legs for strength and stability
  • Captive Feet and Lock Nuts: Provides fine height adjustment and prevent inadvertent loss or overloading of the legs at the maximum bridge height
  • Magnetic Jaw: Prevents inadvertent loss of the slotted washers

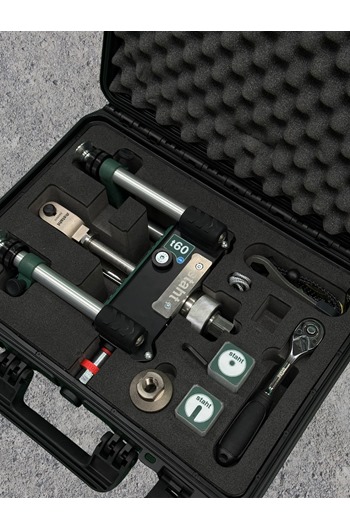

  Kit Contents

  ---

  • 60kN Load Cell, featuring Bluetooth wireless technology
  • Staht Connect App for Android and iOS set up instructions
  • Bridge, with leg braces (rated to 60kN), features quick release fixings for easily removing the Load Cell for use in other Staht products
  • Drop Rod with Sealed Thrust Nut
  • Jaw
  • Captive Clevis Pin
  • Threaded Washer Pack M6, M8, M10, M12, M16 & M20
  • Slotted Washer Pack M6, M8, M10, M12 & M16
  • Anti-Rotation Pull Out Handle
  • 24mm Reversible Ring Ratchet Spanner with Comfort Handle
  • 3/8" Socket Wrench with 17mm Socket
  • Tester Lanyard (Rated to 8kg)
  • Wrist Tool Lanyard (Rated to 0.9kg)
  • USB Charging Cable
  • Rugged protective case with foam inlay
  • 12months calibration certificate provided
  • User Instruction Manual
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Staht T60 Digital Pull Tester Kit 60kN (supplied with Heavy Duty Case) (Net Weight Per Item: 10.70kg):

  Quantity:

  1+

  (£2,507.94 inc VAT)
