• Sealey YAJ15-30 15-30tonne Air Operated Telescopic Jack

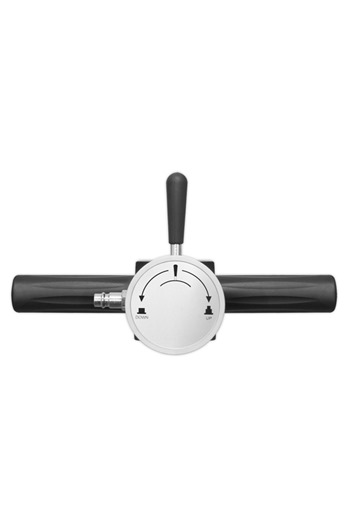

  Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle

  Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle

  Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles

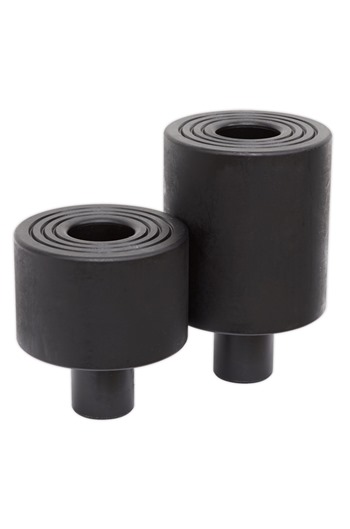

  Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point

  Model number: YAJ15-30

  Capacity: 30tonne

  Chassis length: 480mm

  Extensions: 45/75mm

  Max height (inc. extn)/Capacity-stage 1: 393mm/30tonne

  Max height (inc. extn)/Capacity-stage 2: 472mm/15tonne

  Max height (inc. extn)/Capacity-stage 3: n/a

  Maximum length: 1700mm

  Minimum saddle height: 175mm

  Overall width: 290mm

  Piston stroke: 177mm

  Screw extension: n/a

  Width without wheels: 176mm

  Working pressure: 116-145psi

  Weight: 39kg

• Specifications

• Additional Information

  Instruction Manual Parts Breakdown
• Price Breaks
• Sealey YAJ15-30 15-30tonne Air Operated Telescopic Jack (Net Weight Per Item: 39.00kg):

  Quantity:

  1+

  (£1,071.71 inc VAT)
