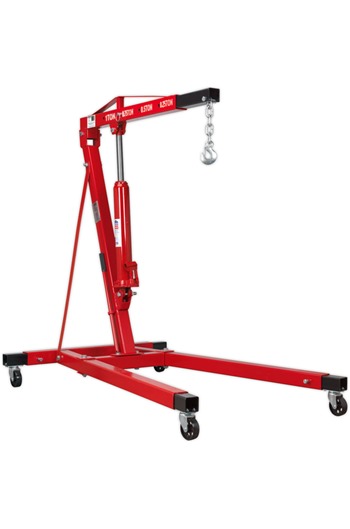

Sealey SC10LR 1tonne Long Reach Engine Crane with Extendable Legs

More From This Brand

Add to New List

• Product Info

• Sealey SC10LR 1tonne Long Reach Engine Crane with Extendable Legs

  Delivered in knock-down form for reduced freight cost

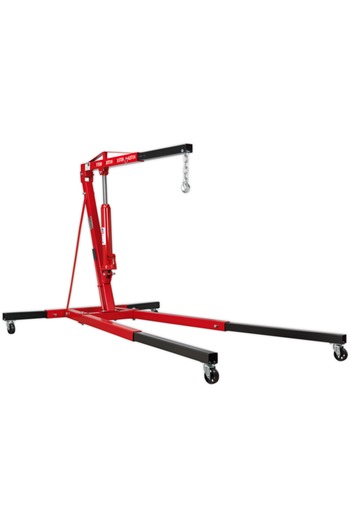

  Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1500mm

  Side pump access with removable handle

  This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery

  Model: SC10LR

  Height jib down: 1460mm

  Height legs folded: N/A

  Height of frame: 180mm

  Length: 1575mm

  Rear width: 1000/15000mm

  Width front frame: 920/1030mm

  Width insert front frame: 660/1010mm

  Length of jib position 1: 960mm

  Length of jib position 2: 1040mm

  Length of jib position 3: 1320mm

  Length of jib position 4: 1500mm

  Lifting capacity in position 1: 1000kg

  Lifting capacity in position 2: 750kg

  Lifting capacity in position 3: 500kg

  Lifting capacity in position 4: 250kg

  Max lifting height at jib position 1: 1850mm

  Max lifting height at jib position 2: 1990mm

  Max lifting height at jib position 3: 2130mm

  Max lifting height at jib position 4: 2270mm

  Weight: 105kg



• Specifications

• Additional Information

  Instruction Manual Parts Breakdown
• Price Breaks
• Sealey SC10LR 1tonne Long Reach Engine Crane with Extendable Legs (Net Weight Per Item: 105.00kg):

  Quantity:

  1+

  (£472.62 inc VAT)
