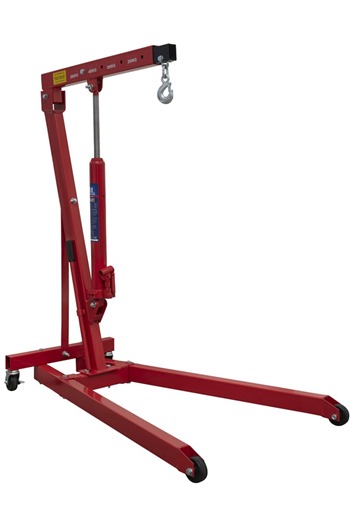

Sealey PH5 0.5tonne Low Profile Engine Crane

More From This Brand

Add to New List

• Product Info

• Sealey PH5 0.5tonne Low Profile Engine Crane

  Low entry engine crane with a height of only 100mm at the wheels

  Weighs only 37kg so is extremely lightweight and manoeuvrable

  Heavy-duty castors and pump access from side, for safe handling of loads

  Delivered in knock-down form to reduce freight costs, some self-assembly required

  Model: PH5

  Height jib down: 1330mm

  Height of frame: 100mm

  Length: 1210mm

  Rear width: 550mm

  Width front frame: 700mm

  Width insert front frame: 800mm

  Length of jib position 1: 750mm

  Length of jib position 2: 860mm

  Length of jib position 3: 980mm

  Length of jib position 4: 1100mm

  Lifting capacity in position 1: 500kg

  Lifting capacity in position 2: 400kg

  Lifting capacity in position 3: 300kg

  Lifting capacity in position 4: 200kg

  Max lifting height at jib position 1: 1950mm

  Max lifting height at jib position 2: 2050mm

  Max lifting height at jib position 3: 2150mm

  Max lifting height at jib position 4: 2250mm

  Weight: 37kg



• Specifications

• Additional Information

  Instruction Manual Parts Breakdown
• Price Breaks
• Sealey PH5 0.5tonne Low Profile Engine Crane (Net Weight Per Item: 37.00kg):

  Quantity:

  1+

  (£254.46 inc VAT)
