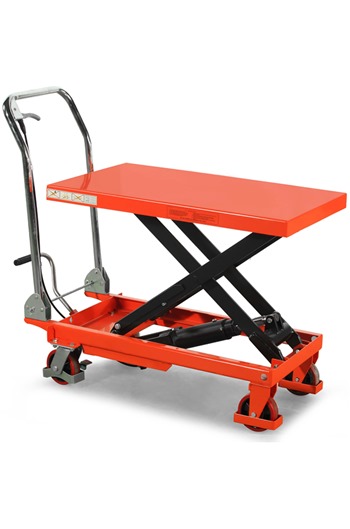

Scissor Lift Hydraulic Platform Table 150kg

More From This Brand

Add to New List

• Product Info

• The LiftinGear 150kg Scissor Lift Hydraulic Platform Table eliminates repetitive bending and manual handling strain by raising loads up to 720mm to a comfortable working height.

  This mobile manual lift table operates via a simple foot-pump hydraulic system no electrical power required making it ideal for warehouses, workshops and production environments where reliable lifting is needed throughout the day.

  Simply load the platform, pump the foot pedal to raise, and twist the release valve to lower for controlled descent. Supplied with a declaration of conformity (DOC) for compliance records and backed by a 12-month warranty.

  ---

  Key Features

  • 150kg Working Load Limit (WLL)
  • Raises loads up to 720mm working height
  • Compact 220mm closed height
  • 700mm x 450mm platform
  • Manual hydraulic foot pump no electrical power required
  • Controlled lowering via release valve
  • Lockable swivel castors for safe positioning
  • Heavy-duty steel construction
  • Supplied with declaration of conformity (DOC)
  • 12-month warranty

  ---

  Specifications Overview

  • Model Number: 03321
  • Working Load Limit: 150kg
  • Maximum Lift Height: 720mm
  • Closed Height: 220mm
  • Platform Dimensions: 700mm (L) x 450mm (W) x 35mm (T)
  • Operation: Manual hydraulic foot pump
  • Lowering Method: Controlled release valve
  • Castors: 2 x swivel (braked) + 2 x fixed
  • Construction: Heavy-duty steel
  • Finish: Orange powder-coated
  • Unit Weight: 41 kg (approx.)
  • Certification: declaration of conformity (DOC
  • Warranty: 12 months

  ---

  Applications

  Suitable for use in:

  • Warehouse packing and dispatch areas - raise orders to bench height for faster processing
  • Assembly and production lines - position components at ergonomic working height
  • Stock picking and goods handling - reduce repetitive bending during sorting
  • Engineering workshops - elevate machinery or components for inspection
  • Maintenance tasks - stable platform for controlled access

  Ideal for environments where loads up to 150kg need to be raised safely without the need for electrical power.

• Specifications
• Brand LiftinGear

  Product Weight 41kg

  Product Colour Orange

  Material Steel

  Maximum Lift Height 720mm

  Lift Range 500mm

  Closed Height 220mm

  Ground Clearance .

  Handle Height .

  Overall Length .

  Overall Width .

  Platform Length 700mm

  Platform Width 450mm

  Platform Thickness 35mm

  W.L.L. 150kg

  Operation Manual

  Foot Pedal Cycle to Maximum Lift .

  Lift Height per Pedal Cycle .

  Wheel Material .

  Wheel Type .

  Wheel Diameter .

  Wheel Width .

  Available for Hire Yes

  CE / UKCA Marked .

  Conforms to EN Standard .

  Certification Supplied Declaration of Conformity

  Inspection Period (From date of first use) .

  Warranty 12 Months

  Custom Made Product No

  Included in Return Policy Yes

  Third Party Supplied No

  Additional Information

  Catalogue Information
• Price Breaks
• 150kg Platform Table (Net Weight Per Item: 41.00kg):

  Quantity:

  1+

  (£269.98 inc VAT)
